Vehicle Exploded View - APRILIA RS 250 1998-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

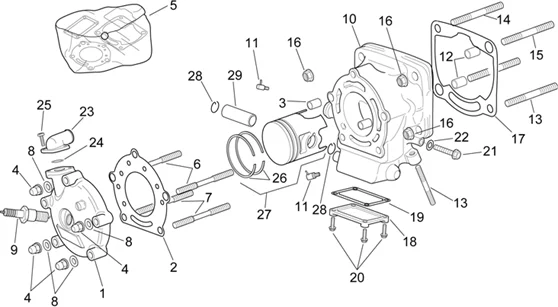

Moteur : 29.39 GROUPE CYLINDRE HORIZONTALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/556/RS_250_1998-2003_29.39.PNG)
2 |
AP8600002 - JOINT T?TE More informationQuantity required : 1 |
||||||
|
3 |
AP8600003 - GOUPILLE More informationQuantity required : 2 |
||||||
|
4 |
AP8600004 - ECROU More informationQuantity required : 5 |
||||||
|
5 |
AP8600026 - JOINTS-JEU More informationQuantity required : 1 |
||||||
|
6 |
AP8600005 - VIS SANS T?TE More informationQuantity required : 2 |
||||||
|
7 |
AP8600006 - VIS SANS T?TE More informationQuantity required : 3 |
||||||
|
8 |
AP8600007 - RONDELLE More informationQuantity required : 5 |
||||||
|
9 |
AP8600008 - BOUGIE NGK BR9ECM More informationQuantity required : 1 |
||||||
|
10 |
AP8600010 - CYLINDRE More informationQuantity required : 1 |
||||||
|
11 |
AP8600011 - RACCORD ENTREE HUILE More informationQuantity required : 1 |
||||||
|
12 |
AP8600012 - GOUPILLE More informationQuantity required : 2 |
||||||
|
13 |
AP8600013 - VIS SANS T?TE More informationQuantity required : 3 |
||||||
|
15 |
AP8600015 - VIS SANS T?TE More informationQuantity required : 3 |
||||||
|
16 |
AP8600016 - ECROU More informationQuantity required : 4 |
||||||
|
17 |
AP8600017 - JOINT BASE CYLINDRE More informationQuantity required : 1 |
||||||
|
19 |
AP8600019 - JOINT COUVERCLE SOUPAPES More informationQuantity required : 1 |
||||||
|
22 |
AP8600022 - RONDELLE More informationQuantity required : 1 |
||||||
|
23 |
AP8600023 - RACCORD SORTIE EAU More informationQuantity required : 1 |
||||||
|
24 |
AP8600024 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
26 |
AP8600128 - SEGMENTS - SERIE More informationQuantity required : 1 |
||||||
|
27 |
AP8600409 - PISTON CPL. More informationQuantity required : 1 |
||||||
|
28 |
AP8600130 - ANNEAU ELASTIQUE More informationQuantity required : 2 |
||||||
|
29 |
AP8600129 - AXE More informationQuantity required : 1 |
