Vehicle Exploded View - APRILIA RS 250 1998-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

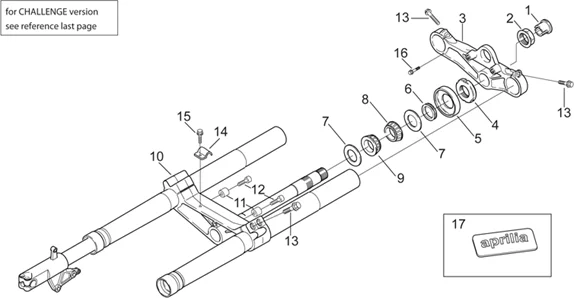

Chassis : 28.04 FOURCHE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/556/RS_250_1998-2003_28.04.PNG)
2 |
AP8123243 - BOUCHON TUBE More informationQuantity required : 1 |
||||||
|
4 |
AP8123734 - BAGUE; More informationQuantity required : 1 |
||||||
|
5 |
AP8120542 - PARE-POUSSIERE More informationQuantity required : 1 |
||||||
|
6 |
AP8101272 - ANNEAU SUPPORT PARE-POUSSIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/3/1/img/71231.jpg)
7 |
GASKET RING FOR STEERING COLUMN "PIAGGIO GENUINE PART" APRILIA 50-125 RX, SX, RS, TUONO, 750 DORSODURO, 600-650 PEGASO -AP8104597- More informationQuantity required : 2 |
||||||
|
8 |
AP8110010 - ROULEMENT ROUL.CON. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/6/6/img/71266.jpg)
9 |
STEERING COLUMN BEARING (LOWER) "PIAGGIO GENUINE PART" APRILIA 50-125 RS, RX, SX, TUONO, AF1, CLASSIC, PEGASO -AP8110024- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/7/4/img/46774.JPG)
11 |
AP8121302 - DOUILLE BLOC. DIRECTION More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/5/img/66335.jpg)
12 |
SCREW - MULTI PURPOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -319165- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/1/img/71951.jpg)
13 |
AP8152289 - VIS BRIDE More informationQuantity required : 6 |
||||||
|
14 |
AP8134438 - PLA. FIX. TUBE FREIN; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
15 |
AP8152272 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
16 |
SCREW - FLANGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152281- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/4/4/2/img/51442.jpg)
17 |
DECAL- "APRILIA" "PIAGGIO GENUINE PART" APRILIA 125-250 RS, TUONO, CAPONORD, RSV-2 -AP8157770- More informationQuantity required : 1 |
