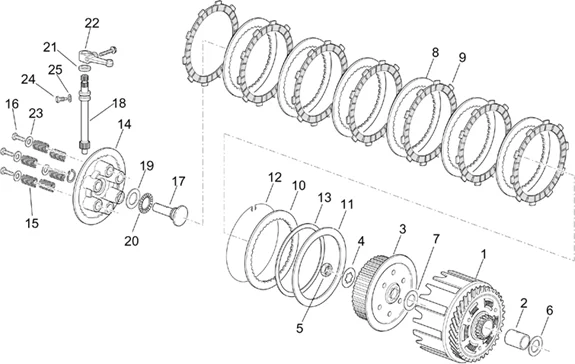

Vehicle Exploded View - APRILIA RS 250 1995-1997

Moteur : 29.31 EMBRAYAGE

Embrayage

Search

1

	P2R reference	61385
	Maker reference	AP8600261

AP8600261 - CLOCHE EMBRAYAGE

More information

Quantity required : 1

2

	P2R reference
	Maker reference	AP8600262

Entretoise cloche embr.

3

	P2R reference	61386
	Maker reference	AP8600263

AP8600263 - MOYEU EMBRAYAGE

More information

Quantity required : 1

4

	P2R reference	61387
	Maker reference	AP8600264

AP8600264 - RONDELLE

More information

Quantity required : 1

5

	P2R reference	61388
	Maker reference	AP8600265

AP8600265 - ECROU

More information

Quantity required : 1

6

	P2R reference	61389
	Maker reference	AP8600266

AP8600266 - RONDELLE

More information

Quantity required : 1

7

	P2R reference
	Maker reference	AP8600267

Rondelle

8

	P2R reference	61391
	Maker reference	AP8600269

AP8600269 - DISQUE EMBR. METAL

More information

Quantity required : 6

9

	P2R reference	61390
	Maker reference	AP8600268

AP8600268 - DISQUE EMBR. GARNI

More information

Quantity required : 7

10

	P2R reference	61392
	Maker reference	AP8600270

AP8600270 - DISQUE EMBR. METAL

More information

Quantity required : 1

11

	P2R reference	61393
	Maker reference	AP8600271

AP8600271 - BAGUE DISQ.EL.EMBR.

More information

Quantity required : 1

12

	P2R reference
	Maker reference	AP8600272

Bague but.disq.embr.

13

	P2R reference	61394
	Maker reference	AP8600273

AP8600273 - DISQUE ELAST. EMBR.

More information

Quantity required : 1

14

	P2R reference	61395
	Maker reference	AP8600274

AP8600274 - DISQUE DE POUSSEE EMBRAYAGE

More information

Quantity required : 1

15

	P2R reference	61396
	Maker reference	AP8600275

AP8600275 - RESSORT EMBRAYAGE

More information

Quantity required : 6

16

	P2R reference
	Maker reference	AP8600276

Vis

17

	P2R reference	61397
	Maker reference	AP8600277

AP8600277 - PLATEAU COMM. EMBR.

More information

Quantity required : 1

18

	P2R reference	61398
	Maker reference	AP8600278

AP8600278 - ARBRE EMBRAYAGE

More information

Quantity required : 1

19

	P2R reference	61399
	Maker reference	AP8600279

AP8600279 - RONDELLE

More information

Quantity required : 1

20

	P2R reference	61400
	Maker reference	AP8600280

AP8600280 - ROULEMENT

More information

Quantity required : 1

21

	P2R reference	61401
	Maker reference	AP8600281

AP8600281 - JOINT SPI

More information

Quantity required : 1

22

	P2R reference	45180
	Maker reference	AP8102539

AP8102539 - LEVIER EMBRAYAGE

More information

Quantity required : 1

23

	P2R reference	61402
	Maker reference	AP8600286

AP8600286 - BAGUE SEEGER

More information

Quantity required : 1

24

	P2R reference
	Maker reference	AP8600284

Vis

25

	P2R reference
	Maker reference	AP8600285

Rondelle
