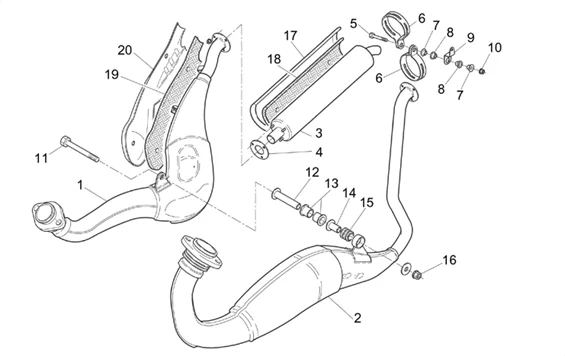

Chassis : 28.10 POT D'ÉCHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/555/RS_250_1995-1997_28.10.PNG)
1 |
AP8119332 - POT DROIT More informationQuantity required : 0 |
||||||
|
2 |
AP8119333 - POT GAUCHE More informationQuantity required : 0 |
||||||
|
2 |
AP8119392 - POT CATALYTIQUE G More informationQuantity required : 0 |
||||||
|
3 |
AP8119331 - SILENCIEUX More informationQuantity required : 0 |
||||||
|
3 |
AP8119384 - SILENCIEUX INOX More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/5/8/img/46658.jpg)
4 |
AP8120812 - JOINT SILENCIEUX More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/2/img/71952.jpg)
5 |
AP8152290 - VIS BRIDE More informationQuantity required : 0 |
||||||
|
6 |
AP8102430 - COLLIER SILENCIEUX More informationQuantity required : 0 |
||||||
|
7 |
AP8121716 - "DOUILLE EN ""T""" More informationQuantity required : 0 |
||||||
|
8 |
AP8120638 - SILENTBLOC More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/3/img/71883.jpg)
10 |
AP8150431 - ECROU AUTOFR. BAS More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/6/9/img/50869.jpg)
11 |
SCREW - ENGINE FIXING SCREW "PIAGGIO GENUINE PART" APRILIA 50 RS, 125 RX, SX, 125 MOJITO -AP8150388- More informationQuantity required : 0 |
||||||
|
12 |
AP8134334 - SUPPORT POT D'ECHAPPEMENT; More informationQuantity required : 0 |
||||||
|
13 |
AP8120947 - CAOUTCHOUC POT More informationQuantity required : 0 |
||||||
|
14 |
AP8221056 - "DOUILLE EN ""T""" More informationQuantity required : 0 |
||||||
|
15 |
AP8120948 - CAOUTCHOUC POT More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/9/img/65379.jpg)
16 |
NUT - FOR EXHAUST FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015341- More informationQuantity required : 0 |
||||||
|
17 |
AP8117100 - GRILLE PROTEC. POT More informationQuantity required : 0 |
||||||
|
18 |
AP8117105 - TTLE PROTECT. POT More informationQuantity required : 0 |
