Vehicle Exploded View - APRILIA RS 250 1995-1997
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

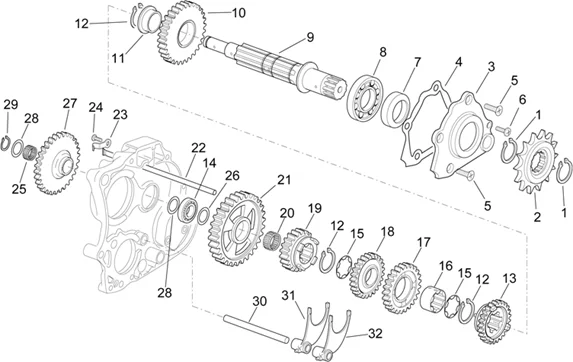

Moteur : 29.30 ARBRE SECONDAIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/555/RS_250_1995-1997_29.30.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/4/2/4/img/61424.jpg)
1 |
AP8600326 - ANNEAU ELASTIQUE More informationQuantity required : 2 |
||||||
2 |
AP8600325 - PIGNON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/4/2/1/img/61421.jpg)
4 |
AP8600319 - JOINT PLAQUE BUTEE More informationQuantity required : 1 |
||||||
|
7 |
AP8600313 - JOINT SPI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/4/1/9/img/61419.jpg)
8 |
AP8600312 - ROULEMENT More informationQuantity required : 1 |
||||||
|
9 |
AP8600298 - ARBRE SECONDAIRE More informationQuantity required : 1 |
||||||
|
10 |
AP8600300 - ENGR. 2E SUR SEC. More informationQuantity required : 1 |
||||||
|
11 |
AP8600307 - DOUILLE More informationQuantity required : 1 |
||||||
|
12 |
AP8600309 - BAGUE SEEGER More informationQuantity required : 3 |
||||||
|
13 |
AP8600405 - ENGR. 6E SUR SEC. More informationQuantity required : 1 |
||||||
|
14 |
AP8600311 - ROULEMENT More informationQuantity required : 1 |
||||||
|
15 |
AP8600310 - RONDELLE More informationQuantity required : 2 |
||||||
|
17 |
AP8600301 - ENGR. 3E SUR SEC. More informationQuantity required : 1 |
||||||
|
19 |
AP8600303 - ENGR. 5E SUR SEC. More informationQuantity required : 1 |
||||||
|
20 |
AP8600306 - ROULEMENT More informationQuantity required : 1 |
||||||
|
21 |
AP8600299 - ENGR. 1E SUR SEC. More informationQuantity required : 1 |
||||||
|
25 |
AP8600327 - ROULEMENT More informationQuantity required : 1 |
||||||
|
28 |
AP8600323 - RONDELLE D'APPUI More informationQuantity required : 2 |
||||||
|
30 |
AP8600330 - AXE DE FOURCHETTE More informationQuantity required : 1 |
||||||
|
31 |
AP8600328 - FOURCHE N1 More informationQuantity required : 1 |
||||||
|
32 |
AP8600404 - FOURCHE N2 More informationQuantity required : 1 |
