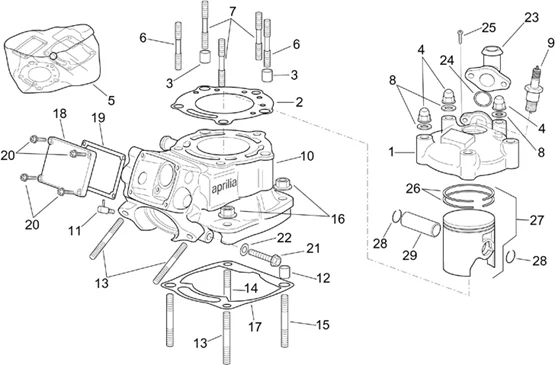

Vehicle Exploded View - APRILIA RS 250 1995-1997

Moteur : 29.23 GROUPE CYLINDRE VERTICAL

Groupe cylindre vertical

Search

1

	P2R reference
	Maker reference	AP8600001

Culasse

2

	P2R reference	61243
	Maker reference	AP8600002

AP8600002 - JOINT T?TE

More information

Quantity required : 1

3

	P2R reference	61244
	Maker reference	AP8600003

AP8600003 - GOUPILLE

More information

Quantity required : 2

4

	P2R reference	61245
	Maker reference	AP8600004

AP8600004 - ECROU

More information

Quantity required : 5

5

	P2R reference	61260
	Maker reference	AP8600026

AP8600026 - JOINTS-JEU

More information

Quantity required : 1

6

	P2R reference	61246
	Maker reference	AP8600005

AP8600005 - VIS SANS T?TE

More information

Quantity required : 2

7

	P2R reference	61247
	Maker reference	AP8600006

AP8600006 - VIS SANS T?TE

More information

Quantity required : 3

8

	P2R reference	61248
	Maker reference	AP8600007

AP8600007 - RONDELLE

More information

Quantity required : 5

9

	P2R reference	72586
	Maker reference	AP8600008

AP8600008 - BOUGIE NGK BR9ECM

More information

Quantity required : 1

10

	P2R reference	61249
	Maker reference	AP8600010

AP8600010 - CYLINDRE

More information

Quantity required : 1

11

	P2R reference	61250
	Maker reference	AP8600011

AP8600011 - RACCORD ENTREE HUILE

More information

Quantity required : 1

12

	P2R reference	61251
	Maker reference	AP8600012

AP8600012 - GOUPILLE

More information

Quantity required : 2

13

	P2R reference	61252
	Maker reference	AP8600013

AP8600013 - VIS SANS T?TE

More information

Quantity required : 3

14

	P2R reference
	Maker reference	AP8600014

Vis sans tête

15

	P2R reference	61253
	Maker reference	AP8600015

AP8600015 - VIS SANS T?TE

More information

Quantity required : 3

16

	P2R reference	61254
	Maker reference	AP8600016

AP8600016 - ECROU

More information

Quantity required : 4

17

	P2R reference	61255
	Maker reference	AP8600017

AP8600017 - JOINT BASE CYLINDRE

More information

Quantity required : 1

18

	P2R reference
	Maker reference	AP8600018

Couv. siège soupapes

19

	P2R reference	61256
	Maker reference	AP8600019

AP8600019 - JOINT COUVERCLE SOUPAPES

More information

Quantity required : 1

20

	P2R reference
	Maker reference	AP8600020

Vis

21

	P2R reference
	Maker reference	AP8600021

Vis purge eau

22

	P2R reference	61257
	Maker reference	AP8600022

AP8600022 - RONDELLE

More information

Quantity required : 1

23

	P2R reference	61258
	Maker reference	AP8600023

AP8600023 - RACCORD SORTIE EAU

More information

Quantity required : 1

24

	P2R reference	61259
	Maker reference	AP8600024

AP8600024 - JOINT TORIQUE

More information

Quantity required : 1

25

	P2R reference
	Maker reference	AP8600025

Vis

26

	P2R reference	61315
	Maker reference	AP8600128

AP8600128 - SEGMENTS - SERIE

More information

Quantity required : 1

27

	P2R reference	61460
	Maker reference	AP8600409

AP8600409 - PISTON CPL.

More information

Quantity required : 1

28

	P2R reference	61317
	Maker reference	AP8600130

AP8600130 - ANNEAU ELASTIQUE

More information

Quantity required : 2

29

	P2R reference	61316
	Maker reference	AP8600129

AP8600129 - AXE

More information

Quantity required : 1
