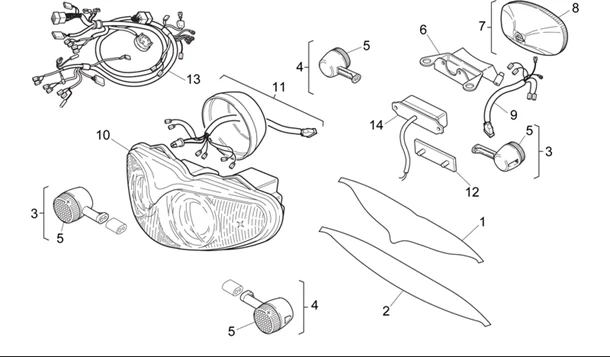

Chassis : 28.14 FEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/555/RS_250_1995-1997_28.14.PNG)
1 |
AP8137646 - DECALCO SUP. PROT.FEU More informationQuantity required : 0 |
||||||
|
2 |
AP8137647 - DECALCO INF. PROT. FEU More informationQuantity required : 0 |
||||||
|
3 |
AP8124140 - CLIGNOT.AV.DR./ARR.GA.; More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/9/1/img/56291.JPG)
5 |
AP8212680 - VITRE CLIGNOTANT More informationQuantity required : 0 |
||||||
|
7 |
AP8124006 - FEU ARRIERE More informationQuantity required : 0 |
||||||
|
8 |
AP8212679 - GLACE PHARE AR More informationQuantity required : 0 |
||||||
|
11 |
AP8124634 - CABLAGE FEU AV More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/9/6/img/45896.JPG)
12 |
AP8112916 - CATADIOPTRE FEU ARRIERE More informationQuantity required : 0 |
||||||
|
14 |
REGISTRATION PLATE LIGHT "PIAGGIO GENUINE PART" APRILIA 125-250 RS, 1000 CAPONORD, 125-250-400-500 ATLANTIC/MOTO-GUZZI 850-1200 BREVA, NORGE -AP8212702- More informationQuantity required : 0 |
