Vehicle Exploded View - APRILIA RS 250 1995-1997
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

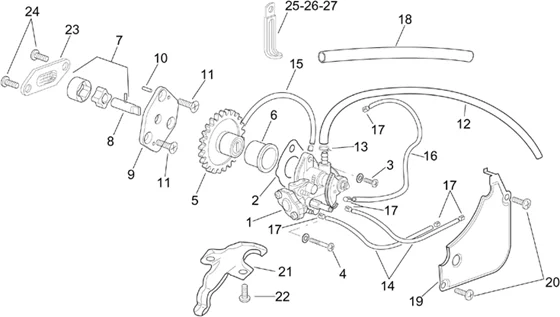

Moteur : 29.20 POMPE HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/555/RS_250_1995-1997_29.20.PNG)
2 |
WATER PUMP GASKET "PIAGGIO GENUINE PART" APRILIA 250 RS 1995>2003 -AP8600203- More informationQuantity required : 1 |
||||||
|
5 |
AP8600206 - ENGRENAGE POMPE HUILE; More informationQuantity required : 1 |
||||||
|
6 |
AP8600207 - DOUILLE; More informationQuantity required : 1 |
||||||
|
14 |
AP8600215 - TUYAU More informationQuantity required : 2 |
||||||
|
15 |
AP8600216 - TUYAU More informationQuantity required : 1 |
||||||
|
16 |
AP8600215 - TUYAU More informationQuantity required : 1 |
||||||
|
17 |
AP8600217 - CLIP More informationQuantity required : 8 |
||||||
|
18 |
AP8600218 - TUYAU More informationQuantity required : 1 |
||||||
|
20 |
AP8600220 - VIS More informationQuantity required : 2 |
||||||
|
22 |
AP8600222 - VIS More informationQuantity required : 2 |
||||||
|
23 |
AP8600223 - FILTRE A HUILE More informationQuantity required : 1 |
