Vehicle Exploded View - APRILIA RS 250 1995-1997
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

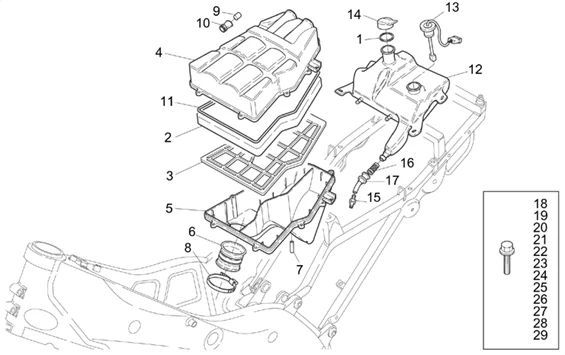

Chassis : 28.09 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/555/RS_250_1995-1997_28.09.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/4/0/img/56840.jpg)
1 |
GASKET FOR OIL TANK CAP "PIAGGIO GENUINE PART" APRILIA SR 50 1993>2004 -AP8220195- More informationQuantity required : 0 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/3/img/71173.jpg)
2 |
AIR FILTER "PIAGGIO GENUINE PART" APRILIA 250 RS 1998>2003 -AP8102351- More informationQuantity required : 0 |
|||||||||
3 |
AP8131905 - GRILLE FERMET.FILTRE; More informationQuantity required : 0 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/6/8/1/img/48681.jpg)
4 |
AIR BOX COVER "PIAGGIO GENUINE PART" 250 RS 1995>2003 -AP8131906- More informationQuantity required : 0 |
|||||||||
|
6 |
AP8120837 - MANCHON D'ASPIRATION More informationQuantity required : 0 |
|||||||||
|
7 |
AP8102459 - TUBE PURGE C.FILTRE More informationQuantity required : 0 |
|||||||||
|
11 |
AP8120950 - JOINT CORPS FILTRE More informationQuantity required : 0 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/6/img/71166.jpg)
15 |
2 WAY UNION (FOR FUEL) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8101944- More informationQuantity required : 0 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/0/img/71170.jpg)
16 |
OIL TANK FILTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA 50-125 CC -AP8102224- More informationQuantity required : 0 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/4/2/img/45142.jpg)
17 |
RUBBER SPACER FOR OIL HOSE "PIAGGIO GENUINE PART" COMMON TO ALL APRILIA 50-125 -AP8102223- More informationQuantity required : 0 |
|||||||||
|
18 |
AP8150438 - VIS More informationQuantity required : 0 |
|||||||||
|
19 |
AP8150439 - VIS More informationQuantity required : 0 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
20 |
AP8152287 - VIS BRIDE More informationQuantity required : 0 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
21 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 0 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
22 |
AP8152279 - VIS BRIDE More informationQuantity required : 0 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
23 |
AP8152280 - VIS BRIDE More informationQuantity required : 0 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
24 |
SCREW - FLANGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152281- More informationQuantity required : 0 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/7/6/img/50976.jpg)
25 |
AP8152283 - VIS BRIDE More informationQuantity required : 0 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/0/img/71940.JPG)
26 |
AP8152274 - VIS BRIDE More informationQuantity required : 0 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/9/7/img/69697.jpg)
27 |
855799 - VIS BRIDE M5X0,8 L.28 EX 7 More informationQuantity required : 0 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
28 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246- More informationQuantity required : 0 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/1/img/71961.jpg)
29 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302- More informationQuantity required : 0 |
|||||||||
