Vehicle Exploded View - APRILIA TUONO 125 RS 125 Tuono 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

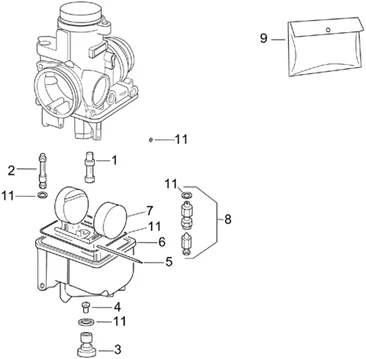

Moteur : 29.24 CARBURATEUR III
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/273/RS_125_Tuono_2003-2004_29.24.PNG)
1 |
AP8106696 - GICLEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/6/1/8/img/45618.jpg)
1 |
AP8106724 - GICLEUR More informationQuantity required : 1 |
||||||
|
2 |
AP8106780 - JET DEMARRAGE More informationQuantity required : 1 |
||||||
|
3 |
AP8106793 - BOUCHON FIX.BAC More informationQuantity required : 1 |
||||||
|
4 |
AP8176132 - GETTO MAX.128 More informationQuantity required : 1 |
||||||
|
4 |
AP8176042 - JET MAXIMUM More informationQuantity required : 1 |
||||||
|
4 |
AP8106728 - JET MAXIMUM More informationQuantity required : 1 |
||||||
|
5 |
AP8106792 - AXE FLOTTEUR More informationQuantity required : 1 |
||||||
|
6 |
AP8106791 - CUVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/4/9/img/71249.jpg)
7 |
CARB FLOAT BOWL - GR.9,5 "PIAGGIO GENUINE PART" APRILIA 125 RS 1999>2010/MOTO-GUZZI V35, V50, V65, V75, TARGA, STRADA, NEVADA -AP8106782- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/3/img/66333.jpg)
8 |
CARB FLOAT NEEDLE VALVE "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO, MX/MOTO-GUZZI 1000 CALIFORNIA, 1000 GT -318604- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/6/4/7/img/45647.jpg)
9 |
GASKET KIT FOR CARB "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO, MX -AP8106796- More informationQuantity required : 1 |
