Vehicle Exploded View - APRILIA TUONO 125 RS 125 Tuono 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

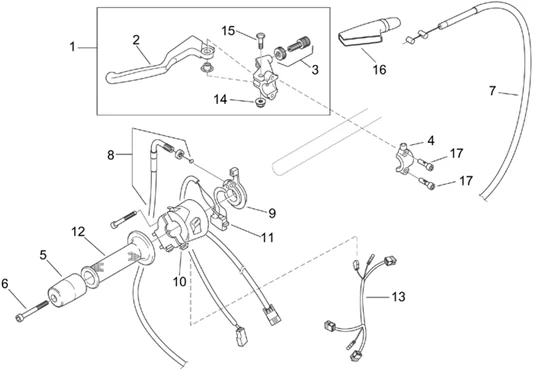

Chassis : 28.17 COMMANDES GCHE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/273/RS_125_Tuono_2003-2004_28.17.PNG)
1 |
AP8118663 - PORTALEVA FRIZIONE More informationQuantity required : 1 |
||||||
|
2 |
AP8118432 - LEVIER EMBRAYAGE NU; More informationQuantity required : 1 |
||||||
|
3 |
CLUTCH CABLE ADJUSTER "PIAGGIO GENUINE PART" APRILIA 125 RX, SX, RS, MX, TUONO -852330- More informationQuantity required : 1 |
||||||
|
4 |
AP8105153 - CAVALIER More informationQuantity required : 1 |
||||||
|
5 |
AP8202330 - MASSE ANTI VIBRATOIRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/4/4/img/50844.jpg)
6 |
AP8150157 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/1/9/0/img/46190.jpg)
7 |
TRANSMISSION CLUTCH CABLE "PIAGGIO GENUINE PART" APRILIA 125 RS 1995>2010, TUONO 2003>2004 -AP8114467- More informationQuantity required : 1 |
||||||
|
8 |
AP8114464 - CAVO STARTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/3/0/0/img/46300.jpg)
9 |
CHOKE COMMAND LEVER "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO, AF1, CLASSIC, 650 PEGASO -AP8118308- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/0/img/71570.jpg)
10 |
LIGHTS SWITCH - LEFT "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO, 650 PEGASO -AP8124915- More informationQuantity required : 1 |
||||||
|
11 |
AP8124152 - POUSSOIR CRONO; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/9/7/img/46297.JPG)
12 |
AP8118287 - COUPLE MANETTES; More informationQuantity required : 1 |
||||||
|
13 |
AP8127534 - PROLUNGA CABLAGGIO DEVIO DX/SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/6/0/img/71360.jpg)
14 |
AP8118490 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/4/img/72194.jpg)
15 |
SCREW - FOR CLUTCH LEVER ADJUSTING "PIAGGIO GENUINE PART" APRILIA 50-125 RS/MOTO-GUZZI 750 BREVA, NEVADA, V7, V9 -AP8213028- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/5/9/4/img/46594.jpg)
16 |
AP8120271 - CACHE-REGLAGE EMBRAYAGE More informationQuantity required : 1 |
||||||
|
17 |
AP8150053 - VIS More informationQuantity required : 2 |
