Vehicle Exploded View - APRILIA TUONO 125 RS 125 Tuono 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

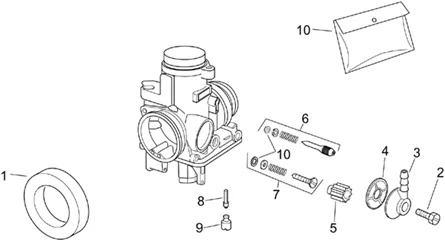

Moteur : 29.23 CARBURATEUR II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/273/RS_125_Tuono_2003-2004_29.23.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/6/4/4/img/45644.jpg)
1 |
AP8106790 - RACCORD PRISE AIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/5/2/img/71252.jpg)
2 |
AP8106795 - VIS FIX.PIPETTE More informationQuantity required : 1 |
||||||
3 |
AP8106794 - PIPETTE RACC. TUYAU ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/7/img/66207.jpg)
5 |
288878 - BOUTON More informationQuantity required : 1 |
||||||
|
6 |
AP8106787 - KIT VIS REG.MELANGE MINIMUM More informationQuantity required : 1 |
||||||
|
7 |
AP8106788 - KIT VIS REG.SOUPAPE GAS More informationQuantity required : 1 |
||||||
|
8 |
AP8106723 - JET EMULSIONNATEUR MIN. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/6/1/6/img/45616.jpg)
9 |
IDLE JET (62) "PIAGGIO GENUINE PART" APRILIA 125 RS 1999>2010, TUONO, MX -AP8106722- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/6/4/7/img/45647.jpg)
10 |
GASKET KIT FOR CARB "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO, MX -AP8106796- More informationQuantity required : 1 |
