Vehicle Exploded View - APRILIA TUONO 125 RS 125 Tuono 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

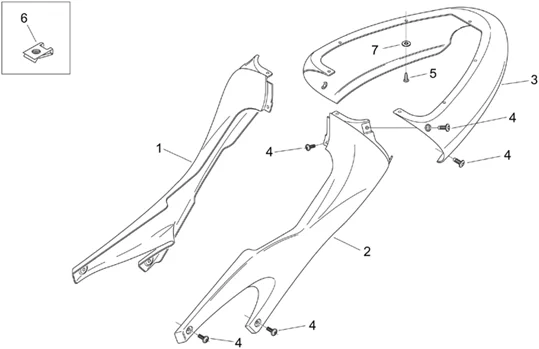

Chassis : 28.12 CARROSSERIE POSTERIEURE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/273/RS_125_Tuono_2003-2004_28.12.PNG)
1 |
AP8168285 - COUVRE-STR.SELLE D, NOIR; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8168286 - COUVRE-STR.SELLE G, NOIR; More informationQuantity required : 1 |
|||||||||
|
3 |
AP8168847 - CODONE V. More informationQuantity required : 1 |
|||||||||
|
3 |
AP8178009 - CODONE V.ROSSO T. More informationQuantity required : 1 |
|||||||||
|
3 |
AP8268208 - CODONE V.SILVER M. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/1/img/71961.jpg)
4 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302- More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/7/img/71887.jpg)
5 |
AP8150444 - VIS TARAUD POUR PLAST. INOX More informationQuantity required : 7 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
6 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/4/img/71804.JPG)
7 |
AP8150011 - RONDELLE More informationQuantity required : 6 |
|||||||||
