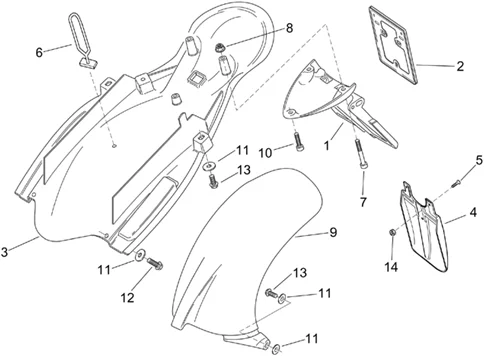

Chassis : 28.13 CARROSSERIE POSTERIEURE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/273/RS_125_Tuono_2003-2004_28.13.PNG)
1 |
MUDGUARD - REAR "PIAGGIO GENUINE PART" APRILIA 50-125-250 RS 1999>2005, 50-125 TUONO 2003>2004 -AP8126583- More informationQuantity required : 1 |
||||||
|
2 |
AP8126115 - PORTE-PLAQUE More informationQuantity required : 1 |
||||||
|
3 |
AP8148672 - FERM. INF.PORT-SELLE NOIR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/8/6/8/img/47868.jpg)
4 |
NUMBER PLATE EXTENSION "PIAGGIO GENUINE PART" APRILIA 50-125 RS 1999>2005, TUONO 2003>2004, 250 RS 1998>2003 -AP8126641- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/3/img/71923.jpg)
5 |
AP8152166 - VIS FHC More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/6/img/71386.JPG)
6 |
AP8120177 - ELASTIQUE SUPPORT FEU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/6/img/71816.JPG)
7 |
AP8150045 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
8 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 3 |
||||||
|
9 |
AP8126356 - GARDE-BOUE BAS NOIR More informationQuantity required : 1 |
||||||
|
9 |
AP8156089 - PARAFANGO BASSO NERO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
10 |
AP8152279 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/4/img/71834.jpg)
11 |
AP8150179 - RONDELLE More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
12 |
AP8152280 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
13 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
14 |
AP8150430 - ECROU AUTOFR. BAS More informationQuantity required : 2 |
