Vehicle Exploded View - APRILIA TUONO 125 RS 125 Tuono 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

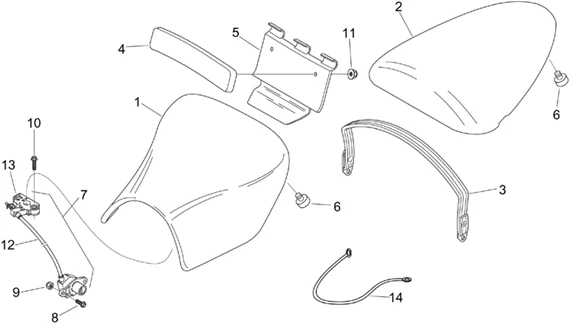

Chassis : 28.11 GROUPE SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/273/RS_125_Tuono_2003-2004_28.11.PNG)
1 |
AP8129391 - SELLA PILOTA More informationQuantity required : 1 |
||||||
|
1 |
AP8129405 - SELLA PILOTA More informationQuantity required : 1 |
||||||
|
1 |
AP8129436 - SELLA PILOTA More informationQuantity required : 1 |
||||||
|
2 |
AP8229389 - SELLA PASSEGGERO NERA More informationQuantity required : 1 |
||||||
|
2 |
AP8129406 - SELLA PASSEGGERO More informationQuantity required : 1 |
||||||
|
2 |
AP8129392 - SELLA PASSEGGERO More informationQuantity required : 1 |
||||||
|
3 |
AP8129393 - CINGHIA PASSEGGERO More informationQuantity required : 1 |
||||||
|
3 |
AP8129407 - CINGHIA PASSEGGERO More informationQuantity required : 1 |
||||||
|
3 |
AP8229390 - CINGHIA PASSEGGERO NERA More informationQuantity required : 1 |
||||||
|
4 |
AP8129223 - COUSSIN DOSSIER; More informationQuantity required : 1 |
||||||
|
5 |
AP8168287 - ABATT. PORTE-OBJETS NOIR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/1/img/72281.jpg)
6 |
AP8220349 - CAOUTCHOUC APPUI SELLE More informationQuantity required : 4 |
||||||
|
7 |
AP8104709 - SERRATURA SELLA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
8 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
9 |
AP8150430 - ECROU AUTOFR. BAS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
10 |
AP8152280 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
11 |
AP8152306 - ECROU AUTOBLOQU. More informationQuantity required : 4 |
||||||
|
12 |
AP8114389 - CABLE SERRURE; More informationQuantity required : 1 |
||||||
|
13 |
AP8102913 - PL.FIX.SELLE PASS. More informationQuantity required : 1 |
||||||
|
14 |
AP8102502 - CABLE ACCROCHAGE CASQUE; More informationQuantity required : 1 |
