Vehicle Exploded View - APRILIA TUONO 125 RS 125 Tuono 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

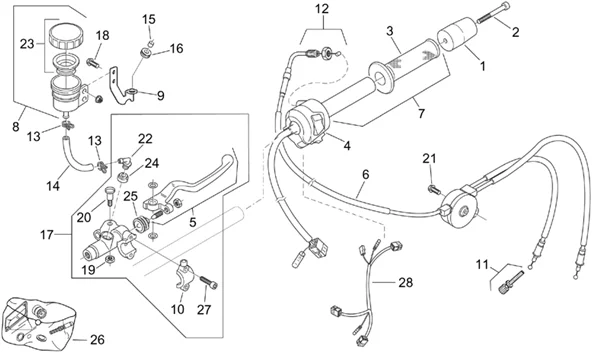

Chassis : 28.16 COMMANDES DTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/273/RS_125_Tuono_2003-2004_28.16.PNG)
1 |
AP8202330 - MASSE ANTI VIBRATOIRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/4/4/img/50844.jpg)
2 |
AP8150157 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/9/7/img/46297.JPG)
3 |
AP8118287 - COUPLE MANETTES; More informationQuantity required : 1 |
||||||
|
4 |
AP81249145 - DEVIO DTE+CABL.; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/3/2/9/img/46329.jpg)
5 |
AP8118460 - LEVIER FREIN NU; More informationQuantity required : 1 |
||||||
|
6 |
TRANSMISSION THROTTLE CABLE "PIAGGIO GENUINE PART" APRILIA 125 TUONO 2003>2004 -AP8114462- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/9/9/img/46299.jpg)
7 |
THROTTLE HANDLE "PIAGGIO GENUINE PART" APRILIA 50 RS 1999>2005, 125 RS 1995>2010, AF1 -AP8118307- More informationQuantity required : 1 |
||||||
|
8 |
AP8113280 - RESERV.HUILE FREINS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/1/0/7/img/49107.jpg)
9 |
BRACKET FOR FRONT BRAKE MASTER CYLINDER "PIAGGIO GENUINE PART" APRILIA 125 TUONO -AP8134965- More informationQuantity required : 1 |
||||||
|
10 |
AP8105153 - CAVALIER More informationQuantity required : 1 |
||||||
|
11 |
AP8114272 - REGLAGE CABLE ACCELERAT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/1/1/2/img/46112.jpg)
12 |
AP8114332 - REGLAGE CABLE ACCELERATEUR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/2/3/0/img/45230.jpg)
13 |
AP8102811 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/7/2/6/img/41726.jpg)
14 |
RUBBER PIPE ON BRAKE FLUID TANK "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA -890509- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/5/9/7/img/46597.JPG)
15 |
AP8120278 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/3/img/71393.jpg)
16 |
AP8120405 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
17 |
AP8133625 - POMPA FRENO ANT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
18 |
AP8152273 - VIS BRIDE More informationQuantity required : 2 |
||||||
|
20 |
AP8113413 - PIVOT LEVIER FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
21 |
AP8152277 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/9/1/3/img/45913.jpg)
22 |
BRAKE MASTER CYLINDER UNION "PIAGGIO GENUINE PART" APRILIA 50 RS, SX, RX, MX, TUONO -AP8113157- More informationQuantity required : 1 |
||||||
|
23 |
AP8113816 - BOUCHON RESERVOIR HUILE FREIN More informationQuantity required : 1 |
||||||
|
24 |
AP8113821 - JOINT RACCORD More informationQuantity required : 1 |
||||||
|
25 |
AP8113824 - COIFFE PPE FREIN AV. More informationQuantity required : 1 |
||||||
|
26 |
AP8113825 - KIT REV. POMPE AV More informationQuantity required : 1 |
||||||
|
28 |
AP8127534 - PROLUNGA CABLAGGIO DEVIO DX/SX More informationQuantity required : 1 |
