Vehicle Exploded View - PIAGGIO VU PORTER PICKUP 1400 Porter Pick 1400 cc Diesel 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

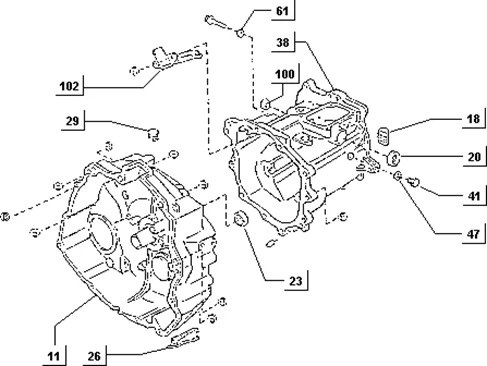

Transmisisons : T33-02 CARTER EMBRAYAGE ET BOÎTE À VITESSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/959/Porter_Pick_1400_cc_Diesel_1998-2005_T33-02.png)
11 |
262038 - CARTER More informationQuantity required : 1 |
||||||
|
18 |
3344987501000 - BOUCHON More informationQuantity required : 1 |
||||||
|
20 |
9004311308000 - BAGUE D'ETANC More informationQuantity required : 1 |
||||||
|
23 |
9004310051000 - BAGUE D'ETANC More informationQuantity required : 1 |
||||||
|
26 |
263364 - BOUCHON More informationQuantity required : 1 |
||||||
|
29 |
3112187503000 - CAPUCHON More informationQuantity required : 1 |
||||||
|
38 |
3311187528000 - BOITE DE VIT. More informationQuantity required : 1 |
||||||
|
38 |
3311187535000 - CARTER BV More informationQuantity required : 1 |
||||||
|
41 |
9004341015000 - BOUCHON More informationQuantity required : 1 |
||||||
|
47 |
9004430186000 - JOINT More informationQuantity required : 1 |
||||||
|
61 |
9004430294000 - PACKING More informationQuantity required : 1 |
||||||
|
100 |
9004331025000 - BOUCHON More informationQuantity required : 1 |
||||||
|
102 |
3312487503000 - TUBE More informationQuantity required : 1 |
