Vehicle Exploded View - PIAGGIO VU PORTER PICKUP 1400 Porter Pick 1400 cc Diesel 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

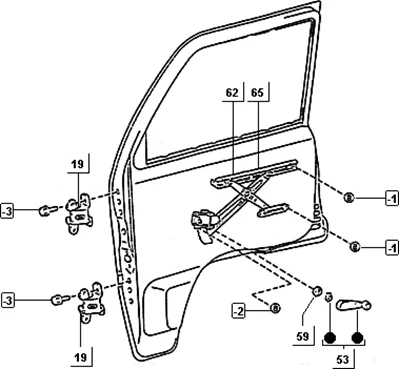

Châssis : T67-54 LÈVE-VITRE AV.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/959/Porter_Pick_1400_cc_Diesel_1998-2005_T67-54.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/6/8/img/109868.jpg)
1 |
9162140610000 - BOULON More informationQuantity required : 2 |
||||||
|
2 |
9162140610000 - BOULON More informationQuantity required : 4 |
||||||
3 |
9004119620000 - BOULON More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/0/1/7/img/114017.jpg)
19 |
FRONT DOOR HINGE "PIAGGIO GENUINE PART" PORTER, CARGO -6871087Z01000 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/3/1/2/img/113312.jpg)
53 |
WINDOW REGULATOR HANDLE "PIAGGIO GENUINE PART" PORTER -613767 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/7/1/img/110271.jpg)
59 |
6928587Z01000 - PLAQUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/6/7/1/img/115671.jpg)
62 |
RIGHT WINDOW REGULATOR "PIAGGIO GENUINE PART" PORTER -56582R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/6/7/5/img/115675.jpg)
65 |
LEFT WINDOW REGULATOR "PIAGGIO GENUINE PART" PORTER -56581R More informationQuantity required : 1 |
