Vehicle Exploded View - PIAGGIO VU PORTER PICKUP 1400 Porter Pick 1400 cc Diesel 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

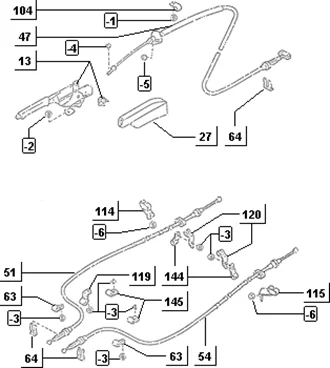

Transmisisons : T46-01 FREIN À MAIN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/959/Porter_Pick_1400_cc_Diesel_1998-2005_T46-01.png)
1 |
9161160612000 - BOULON More informationQuantity required : 1 |
||||||
|
2 |
|
||||||
|
3 |
|
||||||
|
4 |
9411040600000 - ECROU More informationQuantity required : 2 |
||||||
|
5 |
|
||||||
|
6 |
9338116008000 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/0/5/2/img/115052_20251023145320.jpg)
27 |
4624387Z01030 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/7/9/7/img/118797.jpg)
47 |
TRANSMISSION CABLE FOR HANDBRAKE (FROM LEVER TO SPLITTER) "PIAGGIO GENUINE PART" PORTER -645264 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/0/8/1/img/122081.jpg)
51 |
TRANSMISSION CABLE FOR HANDBRAKE "PIAGGIO GENUINE PART" PORTER -4642087Z02000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/2/6/6/img/122266.jpg)
54 |
TRANSMISSION CABLE FOR LEFT HANDBRAKE "PIAGGIO GENUINE PART" PORTER -4643087Z05000 More informationQuantity required : 1 |
||||||
|
63 |
1E003352 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/4/1/img/110441.jpg)
64 |
MOUNTING CLIP FOR HANDBRAKE CABLE "PIAGGIO GENUINE PART" PORTER -9004465038000 More informationQuantity required : 3 |
||||||
|
104 |
B005030 - COLLIER More informationQuantity required : 1 |
||||||
|
114 |
4646487501000 - GUIDE CABLE D More informationQuantity required : 1 |
||||||
|
115 |
4646587504000 - GUIDE CABLE G More informationQuantity required : 1 |
||||||
|
120 |
9004461458000 - COLLIER More informationQuantity required : 2 |
||||||
|
146 |
565212 - TUYAU ISOLANT More informationQuantity required : 1 |
