Vehicle Exploded View - PIAGGIO VU PORTER PICKUP 1400 Porter Pick 1400 cc Diesel 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

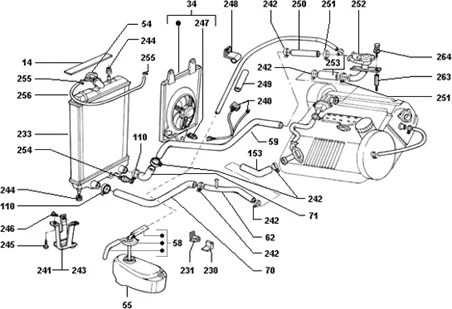

Moteur : T16-03 RADIATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/959/Porter_Pick_1400_cc_Diesel_1998-2005_T16-03.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/3/3/4/img/111334.jpg)
14 |
264646 - JOINT More informationQuantity required : 1 |
|||||||||
34 |
1667087Z02000 - VENTILATEUR RADIATEU More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/9/6/6/img/114966.jpg)
54 |
RADIATOR CAP "PIAGGIO GENUINE PART" PORTER ESSENCE/DIESEL -1640187Z04000 More informationQuantity required : 1 |
|||||||||
|
55 |
1650087Z07000 - SERBAT. ACQUA More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/5/6/0/img/115560.jpg)
58 |
1650387Z08000 - BOUCHON More informationQuantity required : 1 |
|||||||||
|
59 |
613367 - DURITE More informationQuantity required : 1 |
|||||||||
|
62 |
263608 - DURITE RADIAT More informationQuantity required : 1 |
|||||||||
|
70 |
566761 - HOSE RADIATOR More informationQuantity required : 1 |
|||||||||
|
70 |
565694 - DURITE RADIAT 1400 More informationQuantity required : 1 |
|||||||||
|
71 |
263602 - TUBE More informationQuantity required : 1 |
|||||||||
|
71 |
566727 - DURITE RADIAT 1400 More informationQuantity required : 1 |
|||||||||
|
71 |
566687 - DURITE RADIAT 1200 More informationQuantity required : 1 |
|||||||||
|
71 |
566728 - TUYAU More informationQuantity required : 1 |
|||||||||
|
110 |
264044 - COLLIER More informationQuantity required : 2 |
|||||||||
|
111 |
9004464484000 - COLLIER More informationQuantity required : 1 |
|||||||||
|
153 |
263609 - DURITE RADIAT More informationQuantity required : 1 |
|||||||||
|
230 |
1653787Z01000 - SUPPORT More informationQuantity required : 1 |
|||||||||
|
231 |
1653887Z01000 - SUPPORT More informationQuantity required : 1 |
|||||||||
|
233 |
|
|||||||||
|
240 |
566307 - CABLE REFROID 1400 More informationQuantity required : 1 |
|||||||||
|
241 |
565687 - SUPPORT More informationQuantity required : 1 |
|||||||||
|
242 |
264013 - COLLIER More informationQuantity required : 6 |
|||||||||
|
243 |
565685 - SUPPORT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/0/8/6/img/112086.jpg)
244 |
D9004480595 - PASSE CABLE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/2/3/img/110223.jpg)
245 |
D9165140612 - BOULON More informationQuantity required : 2 |
|||||||||
|
246 |
9165160614000 - BOULON More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/0/7/4/img/118074.jpg)
247 |
FAN RESISTOR MODULE "PIAGGIO GENUINE PART" PORTER -B023214 More informationQuantity required : 1 |
|||||||||
|
248 |
566063 - SUPPORT 1400 More informationQuantity required : 1 |
|||||||||
|
249 |
566802 - DURITE 1200 More informationQuantity required : 1 |
|||||||||
|
250 |
566730 - TUYAU REFROIDISSEUR More informationQuantity required : 1 |
|||||||||
|
251 |
565059 - COLLIER 1400 More informationQuantity required : 2 |
|||||||||
|
252 |
566749 - BOUCHON 1400 More informationQuantity required : 1 |
|||||||||
|
253 |
566729 - TUYAU More informationQuantity required : 1 |
|||||||||
|
254 |
|
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/5/img/72865.jpg)
255 |
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM001903 More informationQuantity required : 2 |
|||||||||
|
256 |
566691 - TUYAU More informationQuantity required : 1 |
|||||||||
|
263 |
566527 - VIS 1400 More informationQuantity required : 4 |
|||||||||
|
264 |
|
|||||||||
