Vehicle Exploded View - PIAGGIO VU PORTER PICKUP 1400 Porter Pick 1400 cc Diesel 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

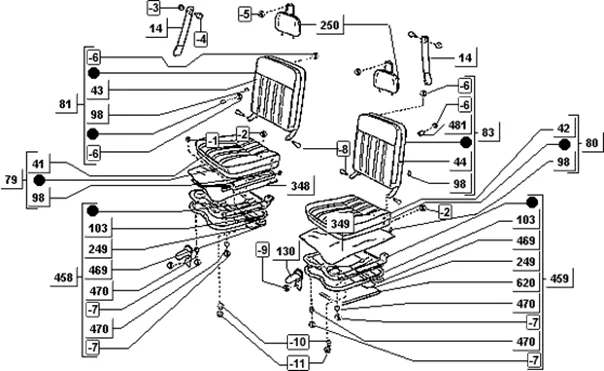

Châssis : T71-51 SIÈGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/959/Porter_Pick_1400_cc_Diesel_1998-2005_T71-51.png)
1 |
9004119524000 - BOULON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/0/4/5/img/110045.jpg)
2 |
9165140816000 - BOULON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/6/9/img/110269.jpg)
3 |
D9004189019 - PASSE-CABLE More informationQuantity required : 1 |
||||||
|
4 |
9356016014000 - VIS More informationQuantity required : 1 |
||||||
|
5 |
CM288712 - VIS TC More informationQuantity required : 3 |
||||||
|
6 |
9004167017000 - VIS More informationQuantity required : 1 |
||||||
|
7 |
9321016012000 - VIS More informationQuantity required : 1 |
||||||
|
8 |
9004109121000 - BOULON More informationQuantity required : 1 |
||||||
|
9 |
9338516014000 - VIS More informationQuantity required : 2 |
||||||
|
10 |
9451100800000 - RONDELLE More informationQuantity required : 4 |
||||||
|
11 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/8/2/5/img/114825.jpg)
14 |
7197387Z01030 - COLLIER More informationQuantity required : 2 |
||||||
|
41 |
|
||||||
|
41 |
|
||||||
|
42 |
|
||||||
|
42 |
|
||||||
|
43 |
|
||||||
|
43 |
|
||||||
|
44 |
|
||||||
|
44 |
|
||||||
|
79 |
264652 - ASSISE More informationQuantity required : 1 |
||||||
|
79 |
264651 - SIEGE More informationQuantity required : 1 |
||||||
|
80 |
264652 - ASSISE More informationQuantity required : 1 |
||||||
|
80 |
264651 - SIEGE More informationQuantity required : 1 |
||||||
|
81 |
264650 - DOSSIER GAUCHE More informationQuantity required : 1 |
||||||
|
81 |
7143087Z06030 - DOSSIER More informationQuantity required : 1 |
||||||
|
83 |
7143087Z06030 - DOSSIER More informationQuantity required : 1 |
||||||
|
83 |
264650 - DOSSIER GAUCHE More informationQuantity required : 1 |
||||||
|
98 |
7181287Z01000 - CIRCLIPS More informationQuantity required : 33 |
||||||
|
103 |
5842487Z01000 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/8/5/6/img/114856.jpg)
130 |
7137087Z01000 - CHARNIERE More informationQuantity required : 2 |
||||||
|
200 |
1653287Z01000 - PARE-POUSSIER More informationQuantity required : 1 |
||||||
|
249 |
5873587Z01000 - PANNEAU INS. More informationQuantity required : 1 |
||||||
|
249 |
5873687Z01000 - PANNEAU INS. More informationQuantity required : 1 |
||||||
|
250 |
566864 - HEADREST More informationQuantity required : 2 |
||||||
|
348 |
262313 - TAPIS DROIT More informationQuantity required : 1 |
||||||
|
349 |
262311 - TAPIS GAUCHE More informationQuantity required : 1 |
||||||
|
458 |
566748 - COUVERCLE More informationQuantity required : 1 |
||||||
|
458 |
5871087Z03000 - COUVERCLE More informationQuantity required : 1 |
||||||
|
459 |
263006 - COUVERCLE More informationQuantity required : 1 |
||||||
|
469 |
5926587Z01000 - PARE-POUSSIER More informationQuantity required : 1 |
||||||
|
470 |
9004541171000 - TAMPON More informationQuantity required : 4 |
||||||
|
481 |
9004541158000 - TAMPON More informationQuantity required : 2 |
||||||
|
620 |
264015 - PANNEAU INS. More informationQuantity required : 1 |
||||||
|
639 |
264321 - POIGNEE More informationQuantity required : 2 |
||||||
|
640 |
264322 - BOUCHON More informationQuantity required : 2 |
