Vehicle Exploded View - PIAGGIO VU PORTER PICKUP 1400 Porter Pick 1400 cc Diesel 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

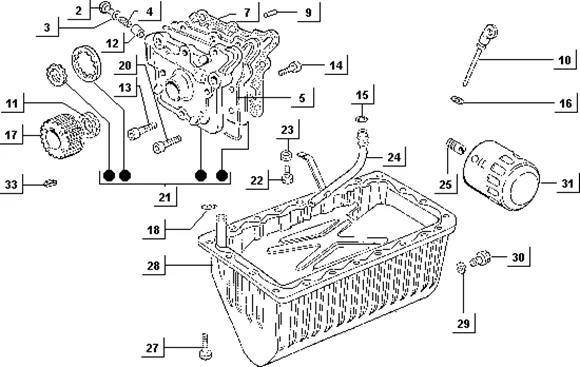

Moteur : T01-08 POMPE CARTER À HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/959/Porter_Pick_1400_cc_Diesel_1998-2005_T01-08.png)
2 |
493240 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/7/0/img/110270.jpg)
3 |
493124 - JOINT More informationQuantity required : 1 |
||||||
|
4 |
493147 - RESSORT More informationQuantity required : 1 |
||||||
|
5 |
493406 - BAGUE EX 493012 More informationQuantity required : 1 |
||||||
|
7 |
850581 - JOINT More informationQuantity required : 1 |
||||||
|
9 |
493226 - GOUPILLE More informationQuantity required : 2 |
||||||
|
10 |
850232 - JAUGE HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/2/2/9/img/117229.jpg)
11 |
OIL SEAL FOR OIL PUMP "PIAGGIO GENUINE PART" PORTER, CARGO DIESEL -493020 More informationQuantity required : 1 |
||||||
|
12 |
493163 - PISTON More informationQuantity required : 1 |
||||||
|
13 |
493275 - VIS M8 X 1,25X 30 More informationQuantity required : 1 |
||||||
|
14 |
493279 - VIS More informationQuantity required : 3 |
||||||
|
15 |
493014 - BAGUE More informationQuantity required : 1 |
||||||
|
16 |
493626 - BAGUE More informationQuantity required : 1 |
||||||
|
17 |
493185 - POULIE More informationQuantity required : 1 |
||||||
|
18 |
493003 - BAGUE More informationQuantity required : 1 |
||||||
|
20 |
493276 - VIS M8X1,25X20 More informationQuantity required : 6 |
||||||
|
21 |
OIL PUMP "PIAGGIO GENUINE PART" PORTER 1400CC DIESEL 1998>2005 -493407- More informationQuantity required : 1 |
||||||
|
22 |
493043 - BOULON More informationQuantity required : 1 |
||||||
|
25 |
493189 - RACCORD More informationQuantity required : 1 |
||||||
|
27 |
493263 - VIS More informationQuantity required : 22 |
||||||
|
28 |
566511 - CARTER HUILE 1400 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/6/4/1/img/110641.jpg)
29 |
493128 - JOINT More informationQuantity required : 1 |
||||||
|
30 |
493236 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/1/4/7/img/116147.jpg)
31 |
OIL FILTER "PIAGGIO GENUINE PART" PORTER 1400 DIESEL -493063 More informationQuantity required : 1 |
||||||
|
33 |
493068 - CLAVETTE 1200 MM 12 More informationQuantity required : 1 |
