Vehicle Exploded View - APRILIA PEGASO STRADA-TRAIL 650 IE 2005-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

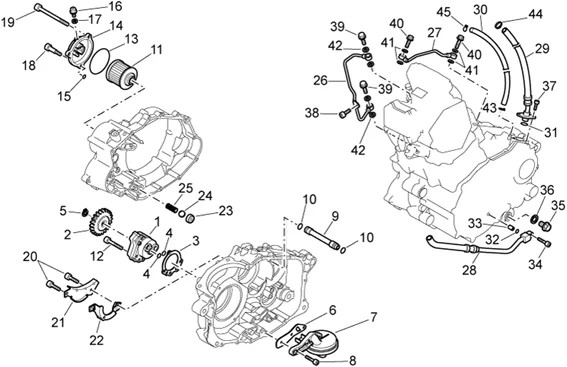

Moteur : 29.46 POMPE HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/306/Pegaso_Strada-Trail_650_IE_2005-2009_29.46.PNG)
1 |
AP8520016 - 6400192 More informationQuantity required : 1 |
||||||
|
2 |
AP8520074 - 4009566 More informationQuantity required : 1 |
||||||
|
3 |
AP8520110 - 5309266 More informationQuantity required : 1 |
||||||
|
4 |
AP8520277 - 5301797 More informationQuantity required : 2 |
||||||
|
5 |
AP8520149 - 0303355 More informationQuantity required : 1 |
||||||
|
6 |
AP8520284 - 5309265 More informationQuantity required : 1 |
||||||
|
7 |
AP8520139 - 6001387 More informationQuantity required : 1 |
||||||
|
8 |
AP8520232 - 4919667 More informationQuantity required : 1 |
||||||
|
10 |
AP8520278 - 5301798 More informationQuantity required : 2 |
||||||
|
11 |
AP8520017 - 6402073 More informationQuantity required : 1 |
||||||
|
12 |
AP8520205 - 4919211 More informationQuantity required : 3 |
||||||
|
13 |
853369 - BAGUE D.63,8X3,7 More informationQuantity required : 1 |
||||||
|
14 |
853326 - OIL FILTER COVER More informationQuantity required : 1 |
||||||
|
14 |
AP8520030 - 2106114 More informationQuantity required : 1 |
||||||
|
15 |
AP8520279 - 5301800 More informationQuantity required : 1 |
||||||
|
16 |
AP8520237 - 4925057 More informationQuantity required : 1 |
||||||
|
18 |
AP8520238 - 4919649 More informationQuantity required : 1 |
||||||
|
19 |
AP8520239 - 4919650 More informationQuantity required : 2 |
||||||
|
20 |
AP8520251 - 4919662 More informationQuantity required : 2 |
||||||
|
21 |
853330 - OIL PUMP COVER More informationQuantity required : 1 |
||||||
|
23 |
AP8520287 - 5305656 More informationQuantity required : 1 |
||||||
|
24 |
AP8520101 - 5104093 More informationQuantity required : 1 |
||||||
|
25 |
AP8520085 - 4601811 More informationQuantity required : 1 |
||||||
|
26 |
AP8520045 - 2605538 More informationQuantity required : 1 |
||||||
|
27 |
AP8520043 - 2605537 More informationQuantity required : 1 |
||||||
|
28 |
AP8520165 - 2403792 More informationQuantity required : 1 |
||||||
|
29 |
AP8520166 - 2403804 More informationQuantity required : 1 |
||||||
|
30 |
AP8520160 - 2403798 More informationQuantity required : 1 |
||||||
|
31 |
853370 - BAGUE D. 14,5X1,9 More informationQuantity required : 1 |
||||||
|
32 |
AP8520280 - 5301801 More informationQuantity required : 1 |
||||||
|
33 |
AP8502807 - GOUPILLE More informationQuantity required : 1 |
||||||
|
34 |
AP8520255 - 4919666 More informationQuantity required : 1 |
||||||
|
35 |
AP8520202 - 4925056 More informationQuantity required : 1 |
||||||
|
36 |
AP8520211 - 4907141 More informationQuantity required : 1 |
||||||
|
37 |
AP8520256 - 4919669 More informationQuantity required : 2 |
||||||
|
38 |
AP8520245 - 4919657 More informationQuantity required : 1 |
||||||
|
39 |
AP8520241 - 4925059 More informationQuantity required : 2 |
||||||
|
40 |
AP8520240 - 4925058 More informationQuantity required : 2 |
||||||
|
41 |
AP8520228 - 4917607 More informationQuantity required : 4 |
||||||
|
42 |
AP8520229 - 4917608 More informationQuantity required : 4 |
||||||
|
43 |
AP8520262 - 4900594 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/2/img/71172.jpg)
44 |
AP8102349 - COLLIER CLIC, BLANC More informationQuantity required : 1 |
||||||
|
45 |
AP8102738 - COLLIER SERR. TUBE More informationQuantity required : 1 |
