Vehicle Exploded View - APRILIA PEGASO STRADA-TRAIL 650 IE 2005-2009 APRILIA

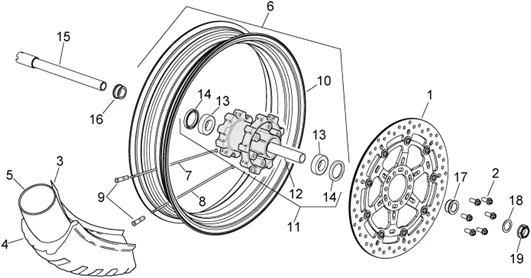

Chassis : 28.31 ROUE AV. III
Roue Av. III
Search
AP8113926 - DISQUE FREIN AVANT;

1
P2R reference P2R reference 71333
Maker reference Maker reference AP8113926

AP8113926 - DISQUE FREIN AVANT;

More information

Quantity required : 1
SCREW - (8x20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152286-

2
P2R reference P2R reference 71948
Maker reference Maker reference AP8152286

SCREW - (8X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152286-

More information

Quantity required : 6
AP8109309 - FLAP RUOTA POSTERIORE 17"

3
P2R reference P2R reference 97060
Maker reference Maker reference AP8109309

AP8109309 - FLAP RUOTA POSTERIORE 17"

More information

Quantity required : 1
AP8109306 - CAMERA D'ARIA ANTERIORE 17"

5
P2R reference P2R reference 97059
Maker reference Maker reference AP8109306

AP8109306 - CAMERA D'ARIA ANTERIORE 17"

More information

Quantity required : 1
853484 - ROUE

6
P2R reference P2R reference 39815
Maker reference Maker reference 853484

853484 - ROUE

More information

Quantity required : 1
AP8128078 - RAGGIO ANTER.D.3,5 LATO DISCO

7
P2R reference P2R reference 48392
Maker reference Maker reference AP8128078

AP8128078 - RAGGIO ANTER.D.3,5 LATO DISCO

More information

Quantity required : 18
AP8128054 - RAGGIO ANTERIORE D.3,5

8
P2R reference P2R reference 48387
Maker reference Maker reference AP8128054

AP8128054 - RAGGIO ANTERIORE D.3,5

More information

Quantity required : 18
AP8108672 - NIPPLES

9
P2R reference P2R reference 97056
Maker reference Maker reference AP8108672

AP8108672 - NIPPLES

More information

Quantity required : 36
852452 - JANTE DE DEVANT 3.5''X17''

10
P2R reference P2R reference 39561
Maker reference Maker reference 852452

852452 - JANTE DE DEVANT 3.5''X17''

More information

Quantity required : 1
852461 - MOYEU AVANT

11
P2R reference P2R reference 39564
Maker reference Maker reference 852461

852461 - MOYEU AVANT

More information

Quantity required : 1
AP8128186 - CUSCINETTO 20X40X12 6004-2RS

13
P2R reference P2R reference 48437
Maker reference Maker reference AP8128186

AP8128186 - CUSCINETTO 20X40X12 6004-2RS

More information

Quantity required : 2
AP8128188 - ANELLO DI TEN.30X42X7 UNI3760

14
P2R reference P2R reference 48438
Maker reference Maker reference AP8128188

AP8128188 - ANELLO DI TEN.30X42X7 UNI3760

More information

Quantity required : 2
AP8125924 - PERNO RUOTA ANT.

15
P2R reference P2R reference 47814
Maker reference Maker reference AP8125924

AP8125924 - PERNO RUOTA ANT.

More information

Quantity required : 1
852930 - ENTRETOISE

16
P2R reference P2R reference 39645
Maker reference Maker reference 852930

852930 - ENTRETOISE

More information

Quantity required : 1
852457 - ENTRETOISE

17
P2R reference P2R reference 39562
Maker reference Maker reference 852457

852457 - ENTRETOISE

More information

Quantity required : 1
AP8125687 - RONDELLE AXE ROUE AR;

18
P2R reference P2R reference 47735
Maker reference Maker reference AP8125687

AP8125687 - RONDELLE AXE ROUE AR;

More information

Quantity required : 1
NUT - FOR REAR WHEEL AXLE "PIAGGIO GENUINE PART" APRILIA CAPONORD, DORSODURO, TUONO, RS, FUTURA -AP8125763-

19
P2R reference P2R reference 47747
Maker reference Maker reference AP8125763

NUT - FOR REAR WHEEL AXLE "PIAGGIO GENUINE PART" APRILIA CAPONORD, DORSODURO, TUONO, RS, FUTURA -AP8125763-

More information

Quantity required : 1
