Vehicle Exploded View - APRILIA PEGASO STRADA-TRAIL 650 IE 2005-2009 APRILIA

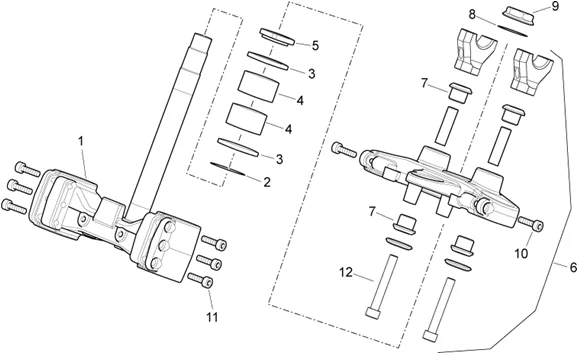

Chassis : 28.06 DIRECTION-VERSION FACTORY
Direction-Version Factory
Search
851957 - PLAQUE

1
P2R reference P2R reference 39439
Maker reference Maker reference 851957

851957 - PLAQUE

More information

Quantity required : 1
AP8121307 - RONDELLE;

2
P2R reference P2R reference 71457
Maker reference Maker reference AP8121307

AP8121307 - RONDELLE;

More information

Quantity required : 1
HEADSET BEARING GASKET "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, DORSODURO/MOTO-GUZZI 750 BREVA, V7, NEVADA -AP8144146-

3
P2R reference P2R reference 71751
Maker reference Maker reference AP8144146

HEADSET BEARING GASKET "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, DORSODURO/MOTO-GUZZI 750 BREVA, V7, NEVADA -AP8144146-

More information

Quantity required : 2
AP8110106 - CUSCINETTO A RULLINI CONICI

4
P2R reference P2R reference 45837
Maker reference Maker reference AP8110106

AP8110106 - CUSCINETTO A RULLINI CONICI

More information

Quantity required : 2
NUT - FOR STEERING FASTENING "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, DORSODURO/MOTO-GUZZI 750 V7, BREVA, NEVADA -AP8163500-

5
P2R reference P2R reference 72082
Maker reference Maker reference AP8163500

NUT - FOR STEERING FASTENING "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, DORSODURO/MOTO-GUZZI 750 V7, BREVA, NEVADA -AP8163500-

More information

Quantity required : 1
852450 - PLAQUE SUP. FOURCHE

6
P2R reference P2R reference 39560
Maker reference Maker reference 852450

852450 - PLAQUE SUP. FOURCHE

More information

Quantity required : 1
AP8144222 - CAOUTCHOUC

7
P2R reference P2R reference 71754
Maker reference Maker reference AP8144222

AP8144222 - CAOUTCHOUC

More information

Quantity required : 4
AP8152442 - RONDELLA TAPPO CANNOTTO

8
P2R reference P2R reference 71985
Maker reference Maker reference AP8152442

AP8152442 - RONDELLA TAPPO CANNOTTO

More information

Quantity required : 1
AP8123243 - BOUCHON TUBE

9
P2R reference P2R reference 47292
Maker reference Maker reference AP8123243

AP8123243 - BOUCHON TUBE

More information

Quantity required : 1
SCREW - ON FORK UPPER PLATE M8x30 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA/MOTO-GUZZI -AP8150540-

10
P2R reference P2R reference 71904
Maker reference Maker reference AP8150540

SCREW - ON FORK UPPER PLATE M8X30 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA/MOTO-GUZZI -AP8150540-

More information

Quantity required : 2
AP8150236 - VIS

11
P2R reference P2R reference 71842
Maker reference Maker reference AP8150236

AP8150236 - VIS

More information

Quantity required : 6
AP8150088 - VIS GUIDON

12
P2R reference P2R reference 71822
Maker reference Maker reference AP8150088

AP8150088 - VIS GUIDON

More information

Quantity required : 2
