Vehicle Exploded View - APRILIA PEGASO STRADA-TRAIL 650 IE 2005-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

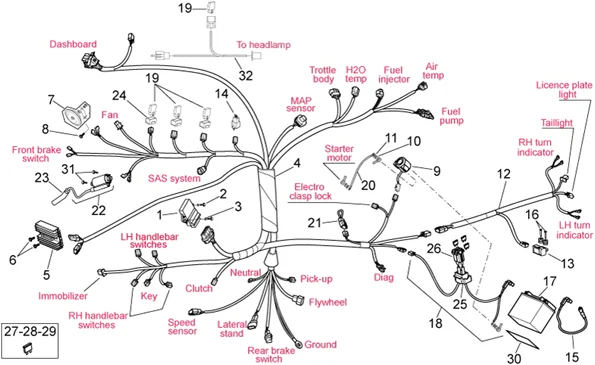

Chassis : 28.40 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/306/Pegaso_Strada-Trail_650_IE_2005-2009_28.40.PNG)
1 |
853325 - STAND CONTROL DEVICE More informationQuantity required : 1 |
||||||
|
1 |
AP8520028 - 0705378 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/0/img/71910.jpg)
2 |
SCREW - (4,70X10) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152043- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/4/img/71804.JPG)
3 |
AP8150011 - RONDELLE More informationQuantity required : 2 |
||||||
|
4 |
AP8127651 - CABLAGGIO PRINCIPALE More informationQuantity required : 1 |
||||||
|
4 |
853394 - GR. CABLES More informationQuantity required : 1 |
||||||
|
4 |
852011 - CABLAGGIO PRINCIPALE More informationQuantity required : 1 |
||||||
|
5 |
AP8127693 - REGOLATORE DI TENSIONE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
6 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 2 |
||||||
|
7 |
AP8127337 - KLAXON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
8 |
AP8152277 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/0/img/71280.jpg)
9 |
RELAY FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" APRILIA 750 SHIVER, DORSODURO, 1000 RSV-2, CAPONORD, 650 PEGASSO, 125-250-500 ATLANTIC, SCARABEO -AP81129275- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/2/img/71812.jpg)
10 |
AP8150026 - ECROU More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
11 |
658830 - RONDELLE More informationQuantity required : 4 |
||||||
|
12 |
AP8127653 - CABLAGGIO FANALE POST. More informationQuantity required : 1 |
||||||
|
13 |
AP8520155 - 0706601 More informationQuantity required : 1 |
||||||
|
14 |
AP8127658 - MODULO DIODI More informationQuantity required : 1 |
||||||
|
15 |
AP8127659 - CAVO MASSA More informationQuantity required : 1 |
||||||
|
16 |
AP8150423 - VIS More informationQuantity required : 2 |
||||||
|
17 |
583158 - BATTERIE 12V/12A YUASA YTX12-BS More informationQuantity required : 1 |
||||||
|
18 |
AP8127662 - CABLAGGIO RICARICA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/9/img/72329.jpg)
19 |
RELAY 12V/30A "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA/MOTO-GUZZI -AP8224462- More informationQuantity required : 3 |
||||||
|
20 |
AP8127670 - CABLAGGIO RELE'-MOTORINO AVV. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/5/4/img/56254.jpg)
21 |
DIODE "PIAGGIO GENUINE PART" 50 APRILIA 1998>2005, 650 PEGASO, 1000 CAPONORD, FUTURA -AP8212382- More informationQuantity required : 1 |
||||||
|
22 |
AP8520027 - BOBINE More informationQuantity required : 1 |
||||||
|
23 |
AP8520008 - 1102114 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/7/img/72277.JPG)
24 |
AP8220283 - CAOUTCHOUC More informationQuantity required : 3 |
||||||
|
25 |
AP8144091 - CAOUTCHOUC P-FUSIBLES; More informationQuantity required : 1 |
||||||
|
26 |
AP8120754 - CAOUTCHOUC P-FUSIBLES More informationQuantity required : 3 |
||||||
|
27 |
CM225607 - FUSIBLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/9/9/img/73399.JPG)
28 |
CM225715 - FUSIBLE More informationQuantity required : 2 |
||||||
|
29 |
495357 - FUSIBLE More informationQuantity required : 2 |
||||||
|
30 |
AP8144553 - GOMMA INF. APPOGGIO BATTERIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
31 |
AP8152273 - VIS BRIDE More informationQuantity required : 2 |
||||||
|
32 |
854803 - CABLAGE More informationQuantity required : 0 |
