Vehicle Exploded View - APRILIA PEGASO STRADA-TRAIL 650 IE 2005-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

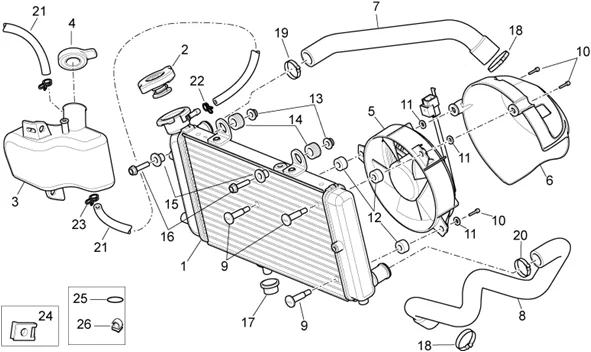

Chassis : 28.25 INSTALLATION REFROIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/306/Pegaso_Strada-Trail_650_IE_2005-2009_28.25.PNG)
1 |
AP8104837 - RADIATORE CON TAPPO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/2/2/3/img/45223.jpg)
2 |
RADIATOR CAP "PIAGGIO GENUINE PART" APRILIA 650 PEGASO 1997>2009, 1000 CAPONORD 2001>2007 -AP8102771- More informationQuantity required : 1 |
||||||
|
3 |
AP8178786 - VASO D'ESPANSIONE More informationQuantity required : 1 |
||||||
|
4 |
2B010567 - EXPANSION TANK PLUG More informationQuantity required : 1 |
||||||
|
4 |
2B010567 - EXPANSION TANK PLUG More informationQuantity required : 1 |
||||||
|
5 |
AP81249305 - VENTILATEUR CPL. More informationQuantity required : 1 |
||||||
|
6 |
AP8179019 - CONVOGLIATORE VENTOLA RADIAT. More informationQuantity required : 1 |
||||||
|
7 |
AP8144679 - TUBO MANDATA-RADIATORE More informationQuantity required : 1 |
||||||
|
8 |
AP8144680 - TUBO RITORNO RADIATORE More informationQuantity required : 1 |
||||||
|
9 |
AP8161118 - PIOLO ATTACCO VENTOLE More informationQuantity required : 3 |
||||||
|
10 |
AP8150120 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/5/img/71805.JPG)
11 |
AP8150012 - RONDELLE More informationQuantity required : 3 |
||||||
|
12 |
AP8161083 - DISTANZIALE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
13 |
AP8150430 - ECROU AUTOFR. BAS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.JPG)
14 |
AP8120030 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/9/8/9/img/56989.jpg)
15 |
AP8221007 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
16 |
AP8152280 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/1/img/71151.jpg)
17 |
AP8101372 - SILENTBLOC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/2/img/71402.jpg)
18 |
AP8120536 - COLLIER CLIC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/8/img/71158.jpg)
19 |
AP8101722 - COLLIER CLIC More informationQuantity required : 1 |
||||||
|
20 |
AP8101588 - COLLIER CLIC More informationQuantity required : 1 |
||||||
|
21 |
890505 - TUYAU ESSENCE D.5.5X10 More informationQuantity required : 2 |
||||||
|
22 |
AP8102738 - COLLIER SERR. TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/7/img/71397.JPG)
23 |
AP8120446 - COLLIER CLIC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
24 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 2 |
||||||
|
25 |
AP8144063 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/0/img/72140.JPG)
26 |
AP8201727 - GUIDE-CABLE NOIR More informationQuantity required : 1 |
