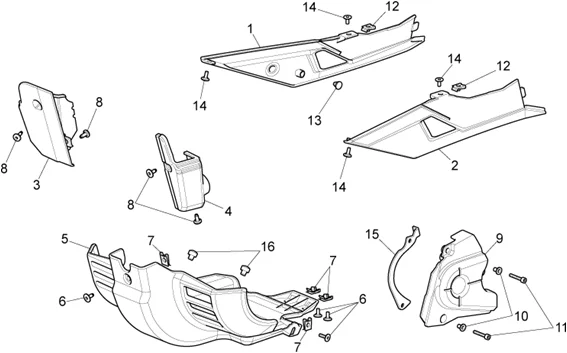

Vehicle Exploded View - APRILIA PEGASO STRADA-TRAIL 650 IE 2005-2009 APRILIA

Chassis : 28.18 CARROSSERIE CENTRALE
Carrosserie centrale
Search
AP8178796 - FIANCATINA SERBATOIO SX

1
P2R reference P2R reference 54163
Maker reference Maker reference AP8178796

AP8178796 - FIANCATINA SERBATOIO SX

More information

Quantity required : 1
AP8178795 - FIANCATINA SERBATOIO DX

2
P2R reference P2R reference 54162
Maker reference Maker reference AP8178795

AP8178795 - FIANCATINA SERBATOIO DX

More information

Quantity required : 1
AP8178799 - FIANCHETTO RADIATORE DX

3
P2R reference P2R reference 54165
Maker reference Maker reference AP8178799

AP8178799 - FIANCHETTO RADIATORE DX

More information

Quantity required : 1
AP8178800 - FIANCHETTO RADIATORE SX

4
P2R reference P2R reference 54166
Maker reference Maker reference AP8178800

AP8178800 - FIANCHETTO RADIATORE SX

More information

Quantity required : 1
AP8178797 - PARACOPPA

5
P2R reference P2R reference 54164
Maker reference Maker reference AP8178797

AP8178797 - PARACOPPA

More information

Quantity required : 1
AP8184374 - COUVERCLE

5
P2R reference P2R reference 55015
Maker reference Maker reference AP8184374

AP8184374 - COUVERCLE

More information

Quantity required : 1
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246-

6
P2R reference P2R reference 71933
Maker reference Maker reference AP8152246

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246-

More information

Quantity required : 4
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

7
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

More information

Quantity required : 4
SCREW - (5x9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8150500-

8
P2R reference P2R reference 71894
Maker reference Maker reference AP8150500

SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8150500-

More information

Quantity required : 4
AP8178784 - CARTER COPRIPIGNONE

9
P2R reference P2R reference 54154
Maker reference Maker reference AP8178784

AP8178784 - CARTER COPRIPIGNONE

More information

Quantity required : 1
AP8121795 - DOUILLE EN T

10
P2R reference P2R reference 71485
Maker reference Maker reference AP8121795

AP8121795 - DOUILLE EN T

More information

Quantity required : 2
AP8150053 - VIS

11
P2R reference P2R reference 50830
Maker reference Maker reference AP8150053

AP8150053 - VIS

More information

Quantity required : 2
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375-

12
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375-

More information

Quantity required : 2
AP8144087 - CAOUTCHOUC AVANT LATERAL;

13
P2R reference P2R reference 71747
Maker reference Maker reference AP8144087

AP8144087 - CAOUTCHOUC AVANT LATERAL;

More information

Quantity required : 2
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302-

14
P2R reference P2R reference 71961
Maker reference Maker reference AP8152302
Replaced by référence Replaced by référence 214483

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302-

More information

Quantity required : 4
AP8107156 - GUIDA CATENA

15
P2R reference P2R reference 45743
Maker reference Maker reference AP8107156

AP8107156 - GUIDA CATENA

More information

Quantity required : 1
RUBBER SPACER "PIAGGIO GENUINE PART" COMMON TO ALL APRILIA/MOTO-GUZZI MOTORBIKES -AP8144081-

16
P2R reference P2R reference 71746
Maker reference Maker reference AP8144081

RUBBER SPACER "PIAGGIO GENUINE PART" COMMON TO ALL APRILIA/MOTO-GUZZI MOTORBIKES -AP8144081-

More information

Quantity required : 2
