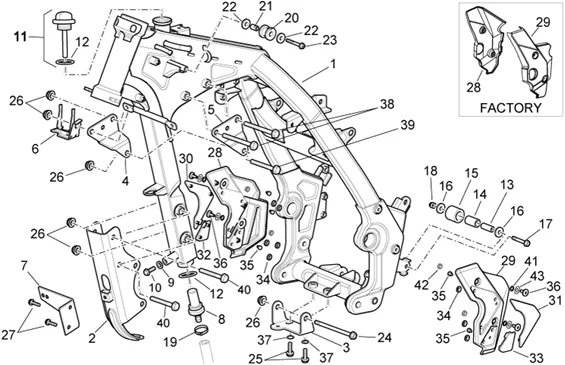

Vehicle Exploded View - APRILIA PEGASO STRADA-TRAIL 650 IE 2005-2009 APRILIA

Chassis : 28.01 CHASSIS
Chassis
Search
AP8145026 - TELAIO FINITO

1
P2R reference P2R reference 49904
Maker reference Maker reference AP8145026

AP8145026 - TELAIO FINITO

More information

Quantity required : 1

AP8145081 - CHASSIS, GRIS

1
P2R reference P2R reference 49919
Maker reference Maker reference AP8145081

AP8145081 - CHASSIS, GRIS

More information

Quantity required : 1

AP8146917 - TELAIO FINITO

1
P2R reference P2R reference 50163
Maker reference Maker reference AP8146917

AP8146917 - TELAIO FINITO

More information

Quantity required : 1

AP8146915 - FAZZOLETTO ANT.SUPPORTO MOTORE

2
P2R reference P2R reference 50162
Maker reference Maker reference AP8146915

AP8146915 - FAZZOLETTO ANT.SUPPORTO MOTORE

More information

Quantity required : 1

AP8146921 - FAZZOLETTO INF.SUPPORTO MOTORE

3
P2R reference P2R reference 50166
Maker reference Maker reference AP8146921

AP8146921 - FAZZOLETTO INF.SUPPORTO MOTORE

More information

Quantity required : 1

AP8146922 - FAZZOLETTO ATTACCO TESTA DX

4
P2R reference P2R reference 50167
Maker reference Maker reference AP8146922

AP8146922 - FAZZOLETTO ATTACCO TESTA DX

More information

Quantity required : 1

AP8146923 - FAZZOLETTO ATTACCO TESTA SX

5
P2R reference P2R reference 50168
Maker reference Maker reference AP8146923

AP8146923 - FAZZOLETTO ATTACCO TESTA SX

More information

Quantity required : 1

AP8146920 - FAZZOLETTO SUPP.VALVOLA AIS

6
P2R reference P2R reference 50165
Maker reference Maker reference AP8146920

AP8146920 - FAZZOLETTO SUPP.VALVOLA AIS

More information

Quantity required : 1

AP8146919 - FAZZOLETTO SUPPORTO REG.TENS.

7
P2R reference P2R reference 50164
Maker reference Maker reference AP8146919

AP8146919 - FAZZOLETTO SUPPORTO REG.TENS.

More information

Quantity required : 1

AP8104911 - FILTRO OLIO A TELAIO

8
P2R reference P2R reference 71241
Maker reference Maker reference AP8104911

AP8104911 - FILTRO OLIO A TELAIO

More information

Quantity required : 1

OIL TANK WASHER (or EXHAUST) (8x16x1,5MM) "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, RSV-4, FALCO, TUONO, CAPONORD, 650 PEGASO, 450-550 RXV, SXV -AP8121862-

9
P2R reference P2R reference 97070
Maker reference Maker reference AP8121862

OIL TANK WASHER (OR EXHAUST) (8X16X1,5MM) "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, RSV-4, FALCO, TUONO, CAPONORD, 650 PEGASO, 450-550 RXV, SXV -AP8121862-

More information

Quantity required : 1

SCREW - (8x20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152286

10
P2R reference P2R reference 71948
Maker reference Maker reference AP8152286

SCREW - (8X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152286

More information

Quantity required : 1

AP8102393 - BOUCHON RES.HUILE+TIGE

11
P2R reference P2R reference 45159
Maker reference Maker reference AP8102393

AP8102393 - BOUCHON RES.HUILE+TIGE

More information

Quantity required : 1

AP8120280 - JOINT TORIQUE

12
P2R reference P2R reference 46598
Maker reference Maker reference AP8120280

AP8120280 - JOINT TORIQUE

More information

Quantity required : 2

AP8101108 - ENTRETOISE

13
P2R reference P2R reference 45093
Maker reference Maker reference AP8101108

AP8101108 - ENTRETOISE

More information

Quantity required : 1

AP8121092 - ENTRETOISE

14
P2R reference P2R reference 46725
Maker reference Maker reference AP8121092

AP8121092 - ENTRETOISE

More information

Quantity required : 1

AP8101704 - ROULETTE TENDEUR DE CHA?NE

15
P2R reference P2R reference 45106
Maker reference Maker reference AP8101704

AP8101704 - ROULETTE TENDEUR DE CHA?NE

More information

Quantity required : 1

AP8150018 - RONDELLE

16
P2R reference P2R reference 71810
Maker reference Maker reference AP8150018

AP8150018 - RONDELLE

More information

Quantity required : 2

AP8152292 - VIS BRIDE

17
P2R reference P2R reference 71954
Maker reference Maker reference AP8152292

AP8152292 - VIS BRIDE

More information

Quantity required : 1

AP8150431 - ECROU AUTOFR. BAS

18
P2R reference P2R reference 71883
Maker reference Maker reference AP8150431

AP8150431 - ECROU AUTOFR. BAS

More information

Quantity required : 1

AP8102786 - COLLIER CLIC

19
P2R reference P2R reference 71200
Maker reference Maker reference AP8102786

AP8102786 - COLLIER CLIC

More information

Quantity required : 1

AP8144714 - GOMMINO

20
P2R reference P2R reference 49841
Maker reference Maker reference AP8144714

AP8144714 - GOMMINO

More information

Quantity required : 2

AP8161051 - DISTANZIALE

21
P2R reference P2R reference 51973
Maker reference Maker reference AP8161051

AP8161051 - DISTANZIALE

More information

Quantity required : 2

AP8150015 - RONDELLE

22
P2R reference P2R reference 71808
Maker reference Maker reference AP8150015

AP8150015 - RONDELLE

More information

Quantity required : 4

AP8152283 - VIS BRIDE

23
P2R reference P2R reference 50976
Maker reference Maker reference AP8152283

AP8152283 - VIS BRIDE

More information

Quantity required : 2

Vis bride

24
P2R reference P2R reference
Maker reference Maker reference AP8152315

Vis bride

AP8152473 - VITE TE M10 X 25 FLANGIATA

25
P2R reference P2R reference 71986
Maker reference Maker reference AP8152473

AP8152473 - VITE TE M10 X 25 FLANGIATA

More information

Quantity required : 2

AP8152301 - ECROU AUTOBLOQU.

26
P2R reference P2R reference 71960
Maker reference Maker reference AP8152301

AP8152301 - ECROU AUTOBLOQU.

More information

Quantity required : 6

AP8152277 - VIS BRIDE

27
P2R reference P2R reference 71941
Maker reference Maker reference AP8152277

AP8152277 - VIS BRIDE

More information

Quantity required : 2

852447 - PROTECTION CHASSIS

28
P2R reference P2R reference 39557
Maker reference Maker reference 852447

852447 - PROTECTION CHASSIS

More information

Quantity required : 1

AP8146962 - PROTEZIONE PEDANA PILOTA DX V.

28
P2R reference P2R reference 50196
Maker reference Maker reference AP8146962

AP8146962 - PROTEZIONE PEDANA PILOTA DX V.

More information

Quantity required : 1

AP8184426 - COUVERCLE

28
P2R reference P2R reference 55047
Maker reference Maker reference AP8184426

AP8184426 - COUVERCLE

More information

Quantity required : 1

852448 - PROTECTION

29
P2R reference P2R reference 39558
Maker reference Maker reference 852448

852448 - PROTECTION

More information

Quantity required : 1

AP8146963 - PROTEZIONE PEDANA PILOTA SX V.

29
P2R reference P2R reference 50197
Maker reference Maker reference AP8146963

AP8146963 - PROTEZIONE PEDANA PILOTA SX V.

More information

Quantity required : 1

AP8184427 - COUVERCLE

29
P2R reference P2R reference 55048
Maker reference Maker reference AP8184427

AP8184427 - COUVERCLE

More information

Quantity required : 1

Insert

30
P2R reference P2R reference
Maker reference Maker reference AP8144730

Insert

Insert

31
P2R reference P2R reference
Maker reference Maker reference AP8144731

Insert

Insert

32
P2R reference P2R reference
Maker reference Maker reference AP8144747

Insert

Insert

33
P2R reference P2R reference
Maker reference Maker reference AP8144748

Insert

WASHER FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150450-

34
P2R reference P2R reference 71888
Maker reference Maker reference AP8150450

WASHER FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150450-

More information

Quantity required : 10

AP8220488 - CAOUTCHOUC CHAMPIGNON;

35
P2R reference P2R reference 72286
Maker reference Maker reference AP8220488

AP8220488 - CAOUTCHOUC CHAMPIGNON;

More information

Quantity required : 6

SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE + MAXISCOOTER APRILIA -AP8152338-

36
P2R reference P2R reference 71972
Maker reference Maker reference AP8152338

SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE + MAXISCOOTER APRILIA -AP8152338-

More information

Quantity required : 4

AP8150020 - RONDELLE

37
P2R reference P2R reference 71811
Maker reference Maker reference AP8150020

AP8150020 - RONDELLE

More information

Quantity required : 2

AP8152482 - VIS BRIDE M10X85

38
P2R reference P2R reference 71988
Maker reference Maker reference AP8152482

AP8152482 - VIS BRIDE M10X85

More information

Quantity required : 2

AP8152410 - VIS BRIDE

39
P2R reference P2R reference 71982
Maker reference Maker reference AP8152410

AP8152410 - VIS BRIDE

More information

Quantity required : 1

AP8152481 - VITE TE M10 X 70 FLANGIATA

40
P2R reference P2R reference 51038
Maker reference Maker reference AP8152481

AP8152481 - VITE TE M10 X 70 FLANGIATA

More information

Quantity required : 4

AP8150382 - RONDELLE

41
P2R reference P2R reference 71873
Maker reference Maker reference AP8150382

AP8150382 - RONDELLE

More information

Quantity required : 4

AP8121811 - "DOUILLE EN ""T"""

42
P2R reference P2R reference 71488
Maker reference Maker reference AP8121811

AP8121811 - "DOUILLE EN ""T"""

More information

Quantity required : 4

AP8150272 - RONDELLE ELASTIQUE COURBE

43
P2R reference P2R reference 97084
Maker reference Maker reference AP8150272

AP8150272 - RONDELLE ELASTIQUE COURBE

More information

Quantity required : 4
