Vehicle Exploded View - APRILIA PEGASO 650 IE 2001-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

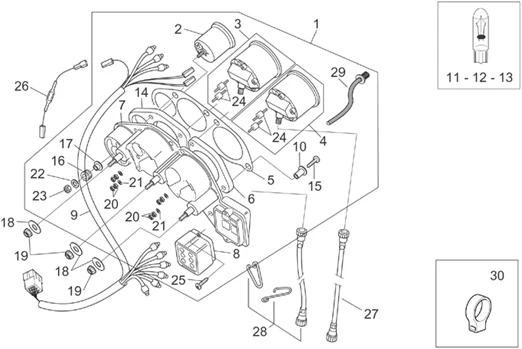

Chassis : 28.21 TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/305/Pegaso_650_IE_2001-2004_28.21.PNG)
1 |
AP8127237 - TABLEAU DE BORD More informationQuantity required : 1 |
||||||
|
1 |
AP8124942 - TABLEAU DE BORD More informationQuantity required : 1 |
||||||
|
3 |
AP8127207 - TACHYMETRE CPL. More informationQuantity required : 1 |
||||||
|
3 |
AP8127236 - TACHYMETRE CPL. More informationQuantity required : 1 |
||||||
|
4 |
AP8127209 - COMPTE-TOURS CPL. More informationQuantity required : 1 |
||||||
|
5 |
AP8158229 - SUPPORT TABLEAU DE BORD; More informationQuantity required : 1 |
||||||
|
6 |
AP8127080 - REMBOURRAGE POUR TACHYMETRE; More informationQuantity required : 1 |
||||||
|
7 |
AP8158230 - BASE SUPPORT INSTRUMENTS; More informationQuantity required : 1 |
||||||
|
8 |
AP8158231 - BO?TIER TEMOINS; More informationQuantity required : 1 |
||||||
|
9 |
AP8127210 - CABLAGE TABLEAU DE BORD More informationQuantity required : 1 |
||||||
|
14 |
AP8117198 - REMBOURRAGE POUR COMPTEUR KM; More informationQuantity required : 1 |
||||||
|
15 |
AP8127094 - VIS TARAUD More informationQuantity required : 5 |
||||||
|
16 |
AP8127086 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
17 |
AP8127085 - DOUILLE MONTAGE THERMOMETRE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/4/1/img/50941.jpg)
18 |
AP8152037 - RONDELLE FER PLATE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
19 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 3 |
||||||
|
20 |
AP8127095 - ECROU More informationQuantity required : 8 |
||||||
|
21 |
AP8127096 - RONDELLE More informationQuantity required : 4 |
||||||
|
22 |
AP8121542 - RONDELLE PLATE More informationQuantity required : 1 |
||||||
|
25 |
AP8127097 - VIS TARAUD More informationQuantity required : 2 |
||||||
|
26 |
AP8127231 - RESISTANCE AVEC CABLAGE More informationQuantity required : 1 |
||||||
|
27 |
AP8114421 - CABLE COMPTE-TOURS; More informationQuantity required : 1 |
||||||
|
28 |
AP8114422 - CABLE COMPTEUR KM; More informationQuantity required : 1 |
||||||
|
29 |
AP8127207 - TACHYMETRE CPL. More informationQuantity required : 1 |
||||||
|
30 |
GU30787310 - BLOC More informationQuantity required : 1 |
