Vehicle Exploded View - APRILIA PEGASO 650 IE 2001-2004 APRILIA

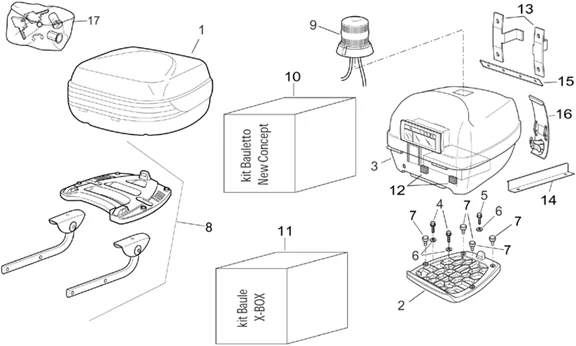

Chassis : 28.18 COFFRE POLICE
Coffre Police
Search
AP8149120 - PLAQUE ACCROCHAGE COFFRE;

2
P2R reference P2R reference 50545
Maker reference Maker reference AP8149120

AP8149120 - PLAQUE ACCROCHAGE COFFRE;

More information

Quantity required : 1
GU80487610 - BAULETTO NEW CONCEPT AZZ

3
P2R reference P2R reference 73502
Maker reference Maker reference GU80487610

GU80487610 - BAULETTO NEW CONCEPT AZZ

More information

Quantity required : 1
GU98680330 - VIS TCEI M6X30

4
P2R reference P2R reference 73570
Maker reference Maker reference GU98680330

GU98680330 - VIS TCEI M6X30

More information

Quantity required : 2
GU98680345 - VIS TCEI M6X45

5
P2R reference P2R reference 73571
Maker reference Maker reference GU98680345

GU98680345 - VIS TCEI M6X45

More information

Quantity required : 1
GU95008306 - RONDELLE 6,4X12X1,2

6
P2R reference P2R reference 73555
Maker reference Maker reference GU95008306

GU95008306 - RONDELLE 6,4X12X1,2

More information

Quantity required : 3
AP8706087 - CAOUTCHOUC

7
P2R reference P2R reference 61472
Maker reference Maker reference AP8706087

AP8706087 - CAOUTCHOUC

More information

Quantity required : 4
AP8790188 - PLAQUE ACCROCHAGE COFFRE

8
P2R reference P2R reference 145309
Maker reference Maker reference AP8790188

AP8790188 - PLAQUE ACCROCHAGE COFFRE

More information

Quantity required : 1
GU80741000 - FARETTO POSTERIORE

9
P2R reference P2R reference 73516
Maker reference Maker reference GU80741000

GU80741000 - FARETTO POSTERIORE

More information

Quantity required : 1
GU80487516 - KIT COFFRE X-BOX

11
P2R reference P2R reference 62991
Maker reference Maker reference GU80487516

GU80487516 - KIT COFFRE X-BOX

More information

Quantity required : 1
GU80471510 - GOMMA ANTIVIBRANTE

12
P2R reference P2R reference 73499
Maker reference Maker reference GU80471510

GU80471510 - GOMMA ANTIVIBRANTE

More information

Quantity required : 2
GU80502910 - SQUADRETTA FISS TELECOMANDO

13
P2R reference P2R reference 73508
Maker reference Maker reference GU80502910

GU80502910 - SQUADRETTA FISS TELECOMANDO

More information

Quantity required : 2
GU80471310 - ANGOLARE FISSAGGIO RADIO

14
P2R reference P2R reference 73498
Maker reference Maker reference GU80471310

GU80471310 - ANGOLARE FISSAGGIO RADIO

More information

Quantity required : 1
GU80502810 - CORNICE TELECOMANDO

15
P2R reference P2R reference 73507
Maker reference Maker reference GU80502810

GU80502810 - CORNICE TELECOMANDO

More information

Quantity required : 2
LOCK KIT- FOR TOP-CASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER APRILIA -AP81041974-

16
P2R reference P2R reference 145279
Maker reference Maker reference AP81041974

LOCK KIT- FOR TOP-CASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER APRILIA -AP81041974-

More information

Quantity required : 1
LOCK KIT- FOR TOP-CASE "PIAGGIO GENUINE PART" APRILIA 650 PEGASO 1997>2004 -AP8796361-

17
P2R reference P2R reference 107555
Maker reference Maker reference AP8796361

LOCK KIT- FOR TOP-CASE "PIAGGIO GENUINE PART" APRILIA 650 PEGASO 1997>2004 -AP8796361-

More information

Quantity required : 1
