Vehicle Exploded View - APRILIA PEGASO 650 IE 2001-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

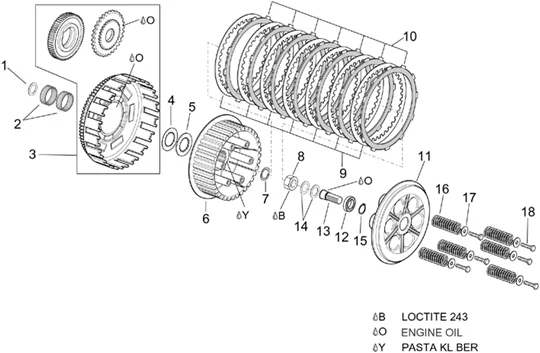

Moteur : 29.59 EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/305/Pegaso_650_IE_2001-2004_29.59.PNG)
2 |
AP0932930 - CAGE A ROULEAUX More informationQuantity required : 2 |
||||||
|
3 |
AP0295442 - TRANSMISS. PRIM. CPL More informationQuantity required : 1 |
||||||
|
4 |
AP0250890 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
5 |
AP0244950 - RACLEUR More informationQuantity required : 1 |
||||||
|
6 |
AP0259115 - MOYEU EMBRAYAGE More informationQuantity required : 1 |
||||||
|
8 |
AP0242607 - ECROU More informationQuantity required : 1 |
||||||
|
9 |
AP8106886 - DISQUE EMBR. ACIER More informationQuantity required : 1 |
||||||
|
10 |
AP8106706 - DISQUE EMBR.GARNI 7 MRC. More informationQuantity required : 1 |
||||||
|
11 |
AP0259122 - PLATEAU A RESSORTS More informationQuantity required : 1 |
||||||
|
12 |
AP0232262 - ROULEMENT More informationQuantity required : 1 |
||||||
|
13 |
AP0259203 - ALBERO A CREMAGLIERA More informationQuantity required : 1 |
||||||
|
14 |
AP0239060 - RESSORT A GODET More informationQuantity required : 2 |
||||||
|
16 |
AP0239162 - RESSORT EMBRAYAGE More informationQuantity required : 6 |
||||||
|
17 |
AP0244020 - RONDELLE More informationQuantity required : 6 |
||||||
|
18 |
AP0240036 - VIS More informationQuantity required : 6 |
