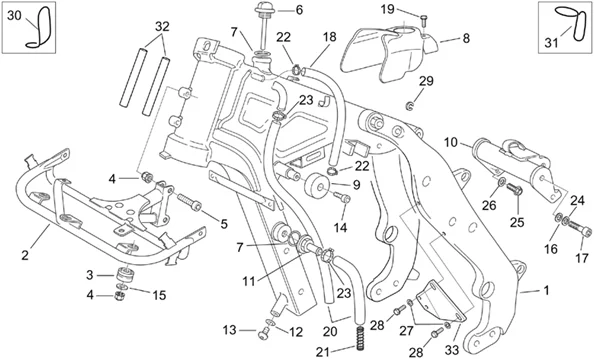

Chassis : 28.01 CHASSIS I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/305/Pegaso_650_IE_2001-2004_28.01.PNG)
2 |
AP8146393 - CHASSIS SUP.CAR.SAB.CAT; More informationQuantity required : 1 |
||||||
|
2 |
AP8146786 - TELAIO SUPPORTO CARENA SAB.CAT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/1/img/72271.jpg)
3 |
AP8220150 - CAOUTCHOUC More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
4 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/1/img/71841.jpg)
5 |
AP8150220 - VIS More informationQuantity required : 2 |
||||||
|
6 |
AP8102393 - BOUCHON RES.HUILE+TIGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/5/9/8/img/46598.jpg)
7 |
AP8120280 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
|
8 |
AP8138772 - PROTECTION CHASSIS NOIRE; More informationQuantity required : 1 |
||||||
|
9 |
AP8201124 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
10 |
AP8134864 - SUPPORT AMORTISSEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/7/0/img/97070.jpg)
12 |
OIL TANK WASHER (OR EXHAUST) (8X16X1,5MM) "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, RSV-4, FALCO, TUONO, CAPONORD, 650 PEGASO, 450-550 RXV, SXV -AP8121862- More informationQuantity required : 1 |
||||||
|
13 |
AP8152055 - VIS More informationQuantity required : 1 |
||||||
|
14 |
AP8152112 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/4/1/img/50941.jpg)
15 |
AP8152037 - RONDELLE FER PLATE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/6/img/71856.JPG)
16 |
AP8150292 - RONDELLE ELASTIQUE COURBE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/3/img/71813.jpg)
17 |
AP8150038 - VIS More informationQuantity required : 2 |
||||||
|
18 |
890498 - TUYAU HUILE D.6X11 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
19 |
AP8152272 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
20 |
2R000278 - TUYAU HUILE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/7/img/71397.JPG)
22 |
AP8120446 - COLLIER CLIC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/2/img/71172.jpg)
23 |
AP8102349 - COLLIER CLIC, BLANC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
24 |
AP8150020 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
25 |
SCREW - (8X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152286- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
26 |
SPRING WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150376- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
27 |
AP8150015 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
28 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 2 |
||||||
|
30 |
AP8121889 - GUIDE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/6/img/71396.JPG)
31 |
AP8120428 - GUIDE-CABLE SUP. More informationQuantity required : 1 |
||||||
|
32 |
896570 - TUYAU More informationQuantity required : 2 |
||||||
|
33 |
AP8700814 - PLAQUE AMORTISSEUR More informationQuantity required : 1 |
