Vehicle Exploded View - APRILIA PEGASO 650 IE 2001-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

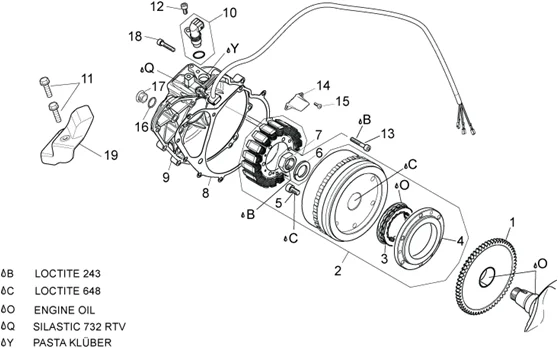

Moteur : 29.63 ALLUMAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/305/Pegaso_650_IE_2001-2004_29.63.PNG)
1 |
AP0634319 - INGRANAGGIO LIBERO CPL. 61 D. More informationQuantity required : 1 |
||||||
|
2 |
AP0296410 - ALLUMAGE More informationQuantity required : 1 |
||||||
|
3 |
AP0659118 - RUOTA LIBERA More informationQuantity required : 1 |
||||||
|
4 |
2R000111 - BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/5/7/1/img/142571.jpg)
5 |
2R000308 - VIS More informationQuantity required : 6 |
||||||
|
6 |
AP0945759 - RONDELLE FENDUE More informationQuantity required : 1 |
||||||
|
7 |
AP0842230 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/8/4/3/img/43843.jpg)
8 |
GASKET FOR IGNITION COVER "PIAGGIO GENUINE PART" 650 PEGASO 2001>2004 -AP0250922- More informationQuantity required : 1 |
||||||
|
9 |
AP0610161 - COUVERCLE D'ALLUMAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/6/3/7/img/47637.jpg)
10 |
SENSOR FOR IGNITION "PIAGGIO GENUINE PART" APRILIA 1000 FUTURA, CAPONORD, 650 PEGASO -AP8124865- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
11 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 2 |
||||||
|
12 |
AP0841331 - VIS More informationQuantity required : 1 |
||||||
|
13 |
AP0241811 - VIS More informationQuantity required : 3 |
||||||
|
14 |
AP0251880 - PLAQUE PROT.CABL.INT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/6/9/1/img/43691.jpg)
15 |
AP0240195 - VIS TCB SPECIALE More informationQuantity required : 2 |
||||||
|
16 |
AP0250890 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/7/4/0/img/43740.jpg)
17 |
AP0241800 - BOUCHON More informationQuantity required : 1 |
||||||
|
18 |
AP0840882 - VIS More informationQuantity required : 10 |
||||||
|
19 |
AP8149056 - PROTECTION DETECTEUR PICK-UP; More informationQuantity required : 1 |
