Vehicle Exploded View - APRILIA PEGASO 650 IE 2001-2004 APRILIA

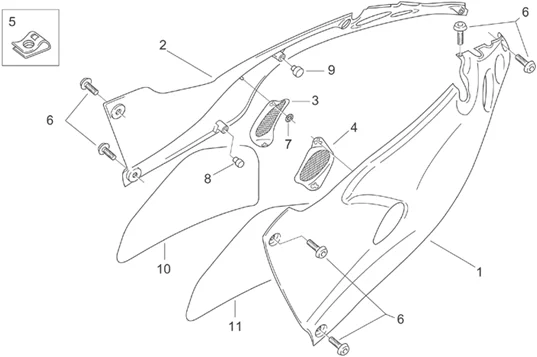

Chassis : 28.15 CARROSSERIE CENTRALE
Carrosserie centrale
Search
AP8149787 - FLANC G, BLEU;

1
P2R reference P2R reference 50741
Maker reference Maker reference AP8149787

AP8149787 - FLANC G, BLEU;

More information

Quantity required : 1
AP8178061 - FIANCATINA SX V.BLU LORD PEN.

1
P2R reference P2R reference 53852
Maker reference Maker reference AP8178061

AP8178061 - FIANCATINA SX V.BLU LORD PEN.

More information

Quantity required : 1
AP8168305 - FLANC G, PEINT JAUNE;

1
P2R reference P2R reference 53101
Maker reference Maker reference AP8168305

AP8168305 - FLANC G, PEINT JAUNE;

More information

Quantity required : 1
AP8168298 - FLANC G, GRIS;

1
P2R reference P2R reference 53098
Maker reference Maker reference AP8168298

AP8168298 - FLANC G, GRIS;

More information

Quantity required : 1
AP8168279 - FLANC G, GRIS;

1
P2R reference P2R reference 53085
Maker reference Maker reference AP8168279

AP8168279 - FLANC G, GRIS;

More information

Quantity required : 1
AP8158507 - FLANC G.BLEU CL.;

1
P2R reference P2R reference 51673
Maker reference Maker reference AP8158507

AP8158507 - FLANC G.BLEU CL.;

More information

Quantity required : 1
AP8158500 - FLANC G.BLEU CL.;

1
P2R reference P2R reference 51670
Maker reference Maker reference AP8158500

AP8158500 - FLANC G.BLEU CL.;

More information

Quantity required : 1
AP8149875 - FLANC G.BLEU CL.;

1
P2R reference P2R reference 50758
Maker reference Maker reference AP8149875

AP8149875 - FLANC G.BLEU CL.;

More information

Quantity required : 1
AP8149867 - FLANC G, ROUGE;

1
P2R reference P2R reference 50755
Maker reference Maker reference AP8149867

AP8149867 - FLANC G, ROUGE;

More information

Quantity required : 1
AP8168886 - FIANCATINA DX V.GIALLO TIBET

2
P2R reference P2R reference 53442
Maker reference Maker reference AP8168886

AP8168886 - FIANCATINA DX V.GIALLO TIBET

More information

Quantity required : 1
AP8168304 - FLANC D, PEINT JAUNE;

2
P2R reference P2R reference 53100
Maker reference Maker reference AP8168304

AP8168304 - FLANC D, PEINT JAUNE;

More information

Quantity required : 1
AP8168297 - FLANC D, GRIS;

2
P2R reference P2R reference 53097
Maker reference Maker reference AP8168297

AP8168297 - FLANC D, GRIS;

More information

Quantity required : 1
AP8168278 - FLANC D, GRIS;

2
P2R reference P2R reference 53084
Maker reference Maker reference AP8168278

AP8168278 - FLANC D, GRIS;

More information

Quantity required : 1
AP8158506 - FLANC D.V.BLEU CL.;

2
P2R reference P2R reference 51672
Maker reference Maker reference AP8158506

AP8158506 - FLANC D.V.BLEU CL.;

More information

Quantity required : 1
AP8158499 - FLANC D.V.BLEU CL.;

2
P2R reference P2R reference 51669
Maker reference Maker reference AP8158499

AP8158499 - FLANC D.V.BLEU CL.;

More information

Quantity required : 1
AP8149874 - FLANC D.V.BLEU CL.;

2
P2R reference P2R reference 50757
Maker reference Maker reference AP8149874

AP8149874 - FLANC D.V.BLEU CL.;

More information

Quantity required : 1
AP8149866 - FLANC D, ROUGE;

2
P2R reference P2R reference 50754
Maker reference Maker reference AP8149866

AP8149866 - FLANC D, ROUGE;

More information

Quantity required : 1
AP8149786 - FLANC D, BLEU;

2
P2R reference P2R reference 50740
Maker reference Maker reference AP8149786

AP8149786 - FLANC D, BLEU;

More information

Quantity required : 1
AP8138747 - GRILLE FLANC DTE;

3
P2R reference P2R reference 49252
Maker reference Maker reference AP8138747

AP8138747 - GRILLE FLANC DTE;

More information

Quantity required : 1
AP8138829 - GRILLE FLANC GCHE;

4
P2R reference P2R reference 49262
Maker reference Maker reference AP8138829

AP8138829 - GRILLE FLANC GCHE;

More information

Quantity required : 1
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375-

5
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375-

More information

Quantity required : 2
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302-

6
P2R reference P2R reference 71961
Maker reference Maker reference AP8152302
Replaced by référence Replaced by référence 214483

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302-

More information

Quantity required : 8
WASHER FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150450-

7
P2R reference P2R reference 71888
Maker reference Maker reference AP8150450

WASHER FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150450-

More information

Quantity required : 4
RUBBER SPACER FOR FUEL CAP "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR 2018> -AP8120712-

8
P2R reference P2R reference 71414
Maker reference Maker reference AP8120712

RUBBER SPACER FOR FUEL CAP "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR 2018> -AP8120712-

More information

Quantity required : 2
RUBBER SPACER "PIAGGIO GENUINE PART" COMMON TO ALL APRILIA/MOTO-GUZZI MOTORBIKES -AP8144081-

9
P2R reference P2R reference 71746
Maker reference Maker reference AP8144081

RUBBER SPACER "PIAGGIO GENUINE PART" COMMON TO ALL APRILIA/MOTO-GUZZI MOTORBIKES -AP8144081-

More information

Quantity required : 2
AP8117095 - PANNEAU THERMOFUGE DTE

10
P2R reference P2R reference 46216
Maker reference Maker reference AP8117095

AP8117095 - PANNEAU THERMOFUGE DTE

More information

Quantity required : 1
AP8117096 - PANNEAU THERMOFUGE GCHE

11
P2R reference P2R reference 46217
Maker reference Maker reference AP8117096

AP8117096 - PANNEAU THERMOFUGE GCHE

More information

Quantity required : 1
