Vehicle Exploded View - APRILIA PEGASO 650 IE 2001-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

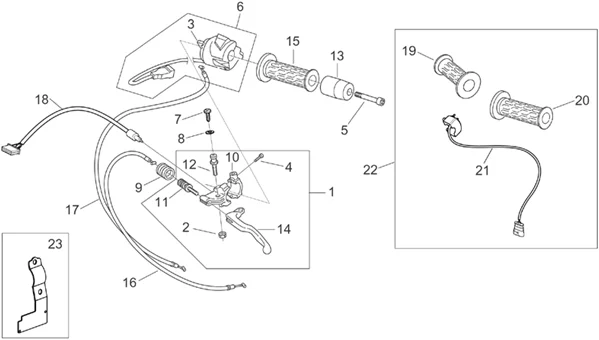

Chassis : 28.24 COMMANDES II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/305/Pegaso_650_IE_2001-2004_28.24.PNG)
1 |
AP8118441 - LEVIER EMBRAYAGE COMPLET; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/6/0/img/71360.jpg)
2 |
AP8118490 - ECROU More informationQuantity required : 1 |
||||||
|
3 |
AP8118621 - LEVIER More informationQuantity required : 1 |
||||||
|
4 |
AP8118376 - VIS; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/4/4/img/50844.jpg)
5 |
AP8150157 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/0/img/71570.jpg)
6 |
LIGHTS SWITCH - LEFT "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO, 650 PEGASO -AP8124915- More informationQuantity required : 1 |
||||||
|
7 |
AP8152019 - VIS TCB SPECIALE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/1/img/71181.jpg)
8 |
RUBBER SPACER FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8102504- More informationQuantity required : 1 |
||||||
|
9 |
AP8114358 - SOUFFLET CABLE EMBRAYAGE; More informationQuantity required : 1 |
||||||
|
10 |
AP8118349 - CAVALIER; More informationQuantity required : 1 |
||||||
|
11 |
AP8118348 - REGLAGE LEVIER EMBRAYAGE; More informationQuantity required : 1 |
||||||
|
12 |
AP8118201 - VIS LEVIER EMBRAYAGE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/2/9/img/71229.JPG)
13 |
AP8104572 - MASSE ANTI VIBR=8102579 More informationQuantity required : 1 |
||||||
|
14 |
AP8118432 - LEVIER EMBRAYAGE NU; More informationQuantity required : 1 |
||||||
|
15 |
AP8118317 - COUPLE MANETTES, NOIR; More informationQuantity required : 1 |
||||||
|
16 |
AP8114435 - CABLE EMBRAYAGE; More informationQuantity required : 1 |
||||||
|
17 |
AP8114413 - CABLE STARTER; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/1/img/71281.jpg)
18 |
STOP LAMP SWITCH "PIAGGIO GENUINE PART" COMMON TO ALL APRILIA / MOTO-GUZZI MOTORBIKES -AP8112996- More informationQuantity required : 1 |
||||||
|
23 |
GU80503510 - SUPPORTO PTT More informationQuantity required : 1 |
