Vehicle Exploded View - APRILIA PEGASO 650 1997-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

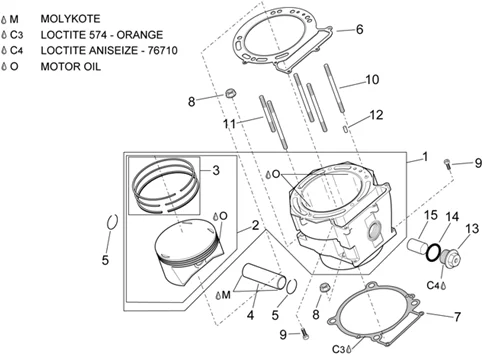

Moteur : 29.55 CYLINDRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/304/Pegaso_650_1997-2000_29.55.PNG)
2 |
AP0295986 - PISTON CPL. More informationQuantity required : 1 |
||||||
|
2 |
AP0295987 - PISTON CPL. More informationQuantity required : 1 |
||||||
|
3 |
AP0295184 - SEGMENTS - SERIE More informationQuantity required : 1 |
||||||
|
3 |
AP0295984 - SEGMENTS - SERIE More informationQuantity required : 1 |
||||||
|
4 |
AP0216201 - AXE More informationQuantity required : 1 |
||||||
|
5 |
AP0245431 - BAGUE DE BUTEE More informationQuantity required : 1 |
||||||
|
5 |
AP0245436 - BAGUE DE BUTEE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/5/1/5/img/43515.jpg)
6 |
AP0230604 - JOINT More informationQuantity required : 1 |
||||||
|
7 |
AP0230592 - JOINT More informationQuantity required : 1 |
||||||
|
8 |
AP0242851 - ECROU More informationQuantity required : 4 |
||||||
|
9 |
AP0840882 - VIS More informationQuantity required : 3 |
||||||
|
10 |
AP0240705 - VIS SANS T?TE More informationQuantity required : 4 |
||||||
|
11 |
AP0240545 - VIS SANS T?TE More informationQuantity required : 1 |
||||||
|
12 |
AP0929650 - GOUPILLE More informationQuantity required : 2 |
||||||
|
13 |
AP0241370 - BOUCHON More informationQuantity required : 1 |
||||||
|
13 |
AP0241375 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/2/7/7/img/44277.jpg)
14 |
O'RING GASKET -FOR IGNITION COVER "PIAGGIO GENUINE PART" APRILIA 1000 CAPONORD, RSV-2, FUTURA, TUONO, 125 RS, RX, SX -AP0430782- More informationQuantity required : 1 |
||||||
|
15 |
AP0260310 - CAOUTCHOUC More informationQuantity required : 1 |
