Vehicle Exploded View - APRILIA PEGASO 650 1997-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

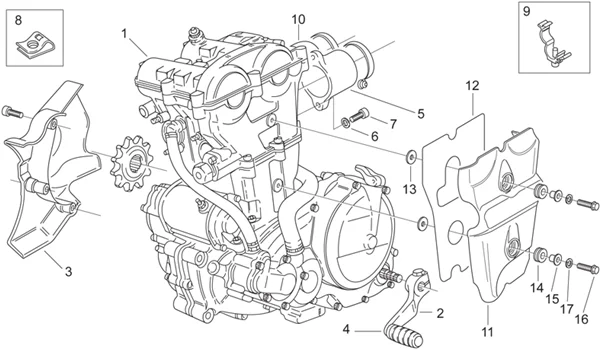

Moteur : 29.36 MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/304/Pegaso_650_1997-2000_29.36.PNG)
2 |
AP8146413 - LEVIER BO?TE DE VITESSES; More informationQuantity required : 1 |
||||||
|
3 |
AP8148735 - CARTER PIGNON, GRIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/2/img/71422.jpg)
4 |
LEVER RUBBER FOR REAR BRAKE LEVER "PIAGGIO GENUINE PART" FOR MOTO-GUZZI 850-1200 NORGE, BREVA, 1200 SPORT -AP8120912- More informationQuantity required : 1 |
||||||
|
5 |
AP8106429 - COLLECTEUR ASPIRATION GCHE More informationQuantity required : 1 |
||||||
|
5 |
AP8106523 - COLLECTEUR ASPIRATION More informationQuantity required : 1 |
||||||
|
6 |
AP8150182 - RONDELLE ELASTIQUE COURBE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
7 |
AP8152279 - VIS BRIDE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
8 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/9/0/0/img/48900.jpg)
9 |
AP8134186 - GUIDE-CABLE; More informationQuantity required : 1 |
||||||
|
10 |
AP8106437 - COLLECTEUR ASPIRATION DTE More informationQuantity required : 1 |
||||||
|
10 |
AP8106523 - COLLECTEUR ASPIRATION More informationQuantity required : 1 |
||||||
|
11 |
AP8148734 - COUVERCLE CYL. GRIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/1/3/img/72313.JPG)
13 |
AP8221297 - RONDELLE ISOLANTE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.JPG)
14 |
AP8120030 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
15 |
AP8221023 - "DOUILLE EN ""T"" *" More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
16 |
AP8152280 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/4/img/71834.jpg)
17 |
AP8150179 - RONDELLE More informationQuantity required : 2 |
