Vehicle Exploded View - APRILIA PEGASO 650 1997-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

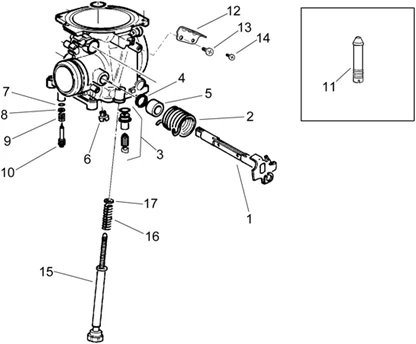

Moteur : 29.34 CARBURATEUR III
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/304/Pegaso_650_1997-2000_29.34.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/2/6/1/img/47261.jpg)
3 |
CARB FLOAT NEEDLE VALVE "PIAGGIO GENUINE PART" APRILIA 650 PEGASO 1992>2000 -AP8122808- More informationQuantity required : 2 |
||||||
4 |
AP8122801 - JOINT SPI; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/5/3/8/img/45538.JPG)
6 |
AP8106468 - GICLEUR MAX More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/2/6/6/img/47266.jpg)
7 |
O'RING GASKET FOR CARB AIR SCREW "PIAGGIO GENUINE PART" APRILIA 125 LEONARDO 1996>2001, 650 PEGASO 1992>2000 -AP8122827- More informationQuantity required : 2 |
||||||
|
8 |
AP8122854 - RONDELLE; More informationQuantity required : 2 |
||||||
|
9 |
AP8122829 - RESSORT; More informationQuantity required : 2 |
||||||
|
11 |
AP8106743 - JET PILOTE More informationQuantity required : 1 |
||||||
|
15 |
AP8106454 - REGLAGE CABLE More informationQuantity required : 1 |
||||||
|
16 |
AP8122805 - RESSORT; More informationQuantity required : 1 |
||||||
|
17 |
AP8122832 - RONDELLE; More informationQuantity required : 1 |
