Vehicle Exploded View - APRILIA PEGASO 650 1997-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

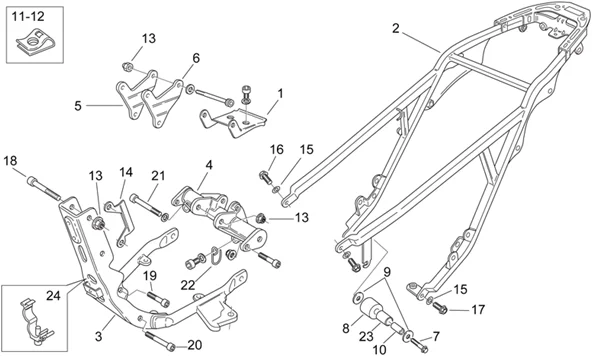

Chassis : 28.02 CHASSIS II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/304/Pegaso_650_1997-2000_28.02.PNG)
1 |
AP8135767 - SUPPORT ARRIERE RESERVOIR; More informationQuantity required : 1 |
||||||
|
2 |
AP8146574 - BASE ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/4/img/71954.jpg)
7 |
AP8152292 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
8 |
AP8120972 - ROULETTE TENDEUR DE CHA?NE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/0/img/71810.jpg)
9 |
AP8150018 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/0/9/3/img/45093.jpg)
10 |
AP8101108 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
11 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
12 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
13 |
AP8152301 - ECROU AUTOBLOQU. More informationQuantity required : 8 |
||||||
|
14 |
AP8134274 - PLAQUE COUVRE-TUYAUX; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
15 |
SPRING WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150376- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
16 |
SCREW - (8X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152286- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
17 |
AP8152287 - VIS BRIDE More informationQuantity required : 2 |
||||||
|
18 |
AP8150392 - VIS More informationQuantity required : 3 |
||||||
|
20 |
AP8150040 - VIS More informationQuantity required : 1 |
||||||
|
21 |
AP8150092 - VIS More informationQuantity required : 1 |
||||||
|
22 |
AP8201417 - GUIDE CABLE TUYAU FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/2/5/img/46725.jpg)
23 |
AP8121092 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/9/0/0/img/48900.jpg)
24 |
AP8134186 - GUIDE-CABLE; More informationQuantity required : 1 |
