Vehicle Exploded View - APRILIA PEGASO 650 1997-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

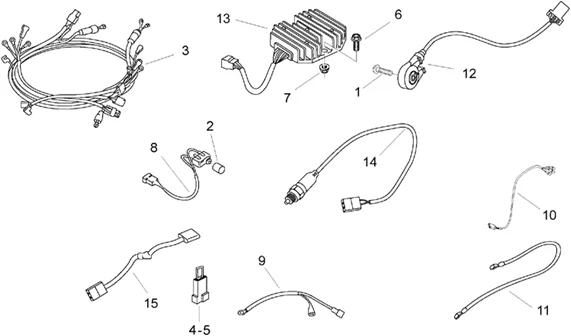

Chassis : 28.45 CIRCUIT ELECTRIQUE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/304/Pegaso_650_1997-2000_28.45.PNG)
2 |
AP8113522 - TAMPON LEVIER FREIN AVANT More informationQuantity required : 1 |
||||||
|
3 |
AP8124096 - CABLAGE PRINCIPAL; More informationQuantity required : 1 |
||||||
|
5 |
AP8124206 - RESISTANCE AVANCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
6 |
AP8152279 - VIS BRIDE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
7 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/5/4/3/img/47543.jpg)
8 |
STOP LIGHT SWITCH+WIRING "PIAGGIO GENUINE PART" APRILIA 125 RX, SX, MX, 250 RS, 650 PEGASO -AP8124597- More informationQuantity required : 1 |
||||||
|
9 |
AP8112959 - CABLAGE POINT MORT-HUILE More informationQuantity required : 1 |
||||||
|
10 |
AP8112857 - CABLAGE BATTERIE-RELAIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/8/7/img/69687.jpg)
12 |
STAND SWITCH "PIAGGIO GENUINE PART" APRILIA ATALANTIC 125-300-400, SCARABEO 400-500, CAPONORD, RS 125, RS 50, RSV 1000, TUONO 1000/MOTO GUZZI BREVA, NEVADA -00N05700601- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/9/0/3/img/45903.jpg)
13 |
VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" APRILIA 250 LEONARDO, 650 PEGASO -AP8112941- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/1/img/71281.jpg)
14 |
STOP LAMP SWITCH "PIAGGIO GENUINE PART" COMMON TO ALL APRILIA / MOTO-GUZZI MOTORBIKES -AP8112996- More informationQuantity required : 1 |
