Vehicle Exploded View - APRILIA PEGASO 650 1997-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

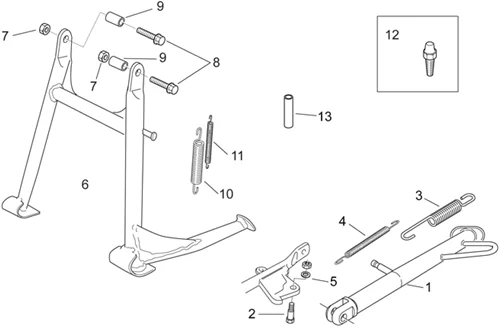

Chassis : 28.04 BÉQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/304/Pegaso_650_1997-2000_28.04.PNG)
1 |
AP8146270 - BEQUILLE LATERALE; More informationQuantity required : 1 |
||||||
|
2 |
AP8121429 - VIS FIX. BEQUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/0/3/img/71503.jpg)
2 |
SCREW - FOR SIDE STAND FASTENING "PIAGGIO GENUINE PARTS" COMMON TO THE APRILIA/ MOTO-GUZZI MOTORBIKES -AP8121994- More informationQuantity required : 1 |
||||||
|
3 |
AP8121310 - RESS.RETOUR BEQ.EXT.; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/4/img/72304.jpg)
4 |
AP8221211 - RESS.RETOUR BEQ.INT. More informationQuantity required : 1 |
||||||
|
5 |
AP8150297 - RONDELLE ELASTIQUE COURBE More informationQuantity required : 1 |
||||||
|
6 |
AP8146271 - BEQUILLE CENTRALE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/5/img/71885.jpg)
7 |
NUT - FRAME FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA +MOTO-GUZZI -AP8150436- More informationQuantity required : 2 |
||||||
|
8 |
AP8150323 - VIS More informationQuantity required : 2 |
||||||
|
9 |
AP8132927 - AXE BIELLE DOUBLE; More informationQuantity required : 2 |
||||||
|
10 |
AP8121015 - RESS.RETOUR BEQ.EXT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/6/img/71426.jpg)
11 |
RETURN SPRING FOR STAND (SMALL) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -AP8121014- More informationQuantity required : 1 |
||||||
|
13 |
AP8120855 - PROT.RESS.CAP.CENT. More informationQuantity required : 2 |
