Vehicle Exploded View - APRILIA PEGASO 650 1997-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

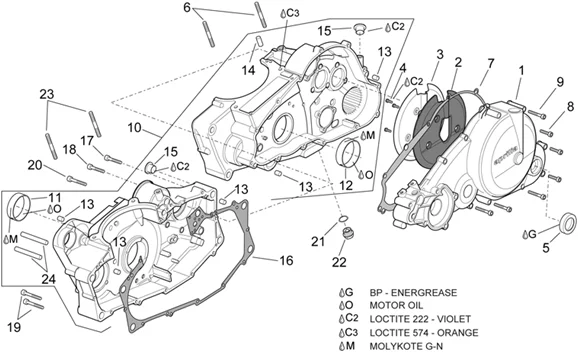

Moteur : 29.50 CARTER MOTEUR I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/304/Pegaso_650_1997-2000_29.50.PNG)
1 |
AP0210379 - COUVERCLE EMBRAYAGE COMPLET; More informationQuantity required : 1 |
||||||
|
3 |
AP0275030 - SUPPORT PANNEAU More informationQuantity required : 1 |
||||||
|
4 |
AP0841680 - VIS TE SPECIALE More informationQuantity required : 3 |
||||||
|
5 |
AP0250450 - JOINT SPI More informationQuantity required : 1 |
||||||
|
6 |
AP0240541 - VIS SANS T?TE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/5/1/3/img/43513.jpg)
7 |
GASKET FOR CLUTCH COVER "PIAGGIO GENUINE PART" APRILIA 650 PEGASO -AP0230581- More informationQuantity required : 1 |
||||||
|
8 |
AP0840882 - VIS More informationQuantity required : 10 |
||||||
|
10 |
AP0296341 - CARTER - COUPLE More informationQuantity required : 1 |
||||||
|
11 |
AP0233677 - BUSSOLA 48X52X22,8 More informationQuantity required : 1 |
||||||
|
12 |
AP0233680 - DOUILLE More informationQuantity required : 1 |
||||||
|
13 |
AP0632010 - GOUPILLE More informationQuantity required : 5 |
||||||
|
14 |
AP0929650 - GOUPILLE More informationQuantity required : 2 |
||||||
|
15 |
AP0247320 - DOUILLE More informationQuantity required : 2 |
||||||
|
16 |
AP0250910 - JOINT More informationQuantity required : 1 |
||||||
|
17 |
AP0241822 - VIS More informationQuantity required : 9 |
||||||
|
18 |
AP0241811 - VIS More informationQuantity required : 2 |
||||||
|
19 |
AP0240531 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/2/9/3/img/44293.jpg)
21 |
OIL PUMP GASKET "PIAGGIO GENUINE PART" APRILIA 125 LEONARDO, SCARABEO, 650 PEGASO -AP0552280- More informationQuantity required : 1 |
||||||
|
22 |
AP0840277 - VIS MAGNETIQUE More informationQuantity required : 1 |
||||||
|
23 |
AP0240545 - VIS SANS T?TE More informationQuantity required : 2 |
||||||
|
24 |
AP0229302 - PIVOT More informationQuantity required : 2 |
||||||
|
24 |
AP0229302 - PIVOT More informationQuantity required : 2 |
