Vehicle Exploded View - MOTO-GUZZI NEVADA 750 1991-1993
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

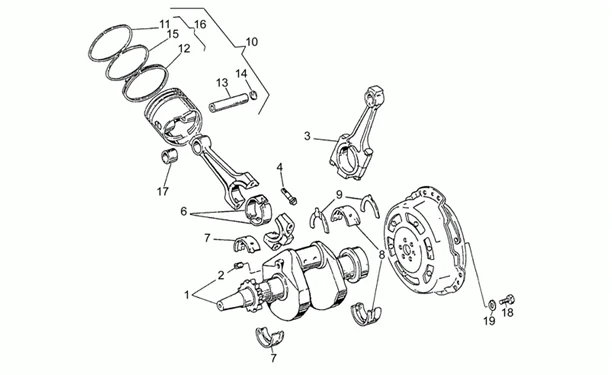

Moteur : 34.24 ARBRE MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/498/Nevada_750_1991-1993_34.24.PNG)
2 |
GU19065400 - BOUCHON More informationQuantity required : 1 |
||||||
|
3 |
1A005325AA - BIELLE More informationQuantity required : 2 |
||||||
|
4 |
GU19062261 - VIS More informationQuantity required : 4 |
||||||
|
6 |
1A0068960B - DEMI ROULEMENT More informationQuantity required : 4 |
||||||
|
7 |
1A0066680G - DEMI-ROULEMENT More informationQuantity required : 2 |
||||||
|
8 |
1A0066690G - DEMI-ROULEMENT More informationQuantity required : 2 |
||||||
|
9 |
GU27066460 - DEMI-ETAU More informationQuantity required : 2 |
||||||
|
11 |
GU19060763 - SEGMENT D'ETANCHEITE More informationQuantity required : 2 |
||||||
|
12 |
GU19061063 - SEGMENT RACLEAR More informationQuantity required : 2 |
||||||
|
13 |
GU27061286 - VIS More informationQuantity required : 2 |
||||||
|
14 |
GU27061385 - BAGUE DE BUTEE More informationQuantity required : 4 |
||||||
|
15 |
GU27060860 - SEGMENT D'ETANCHEITE More informationQuantity required : 2 |
||||||
|
16 |
GU31060616 - ASSEMBLE DE SEGMENTS More informationQuantity required : 2 |
||||||
|
17 |
GU27061885 - BAGUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/5/0/8/img/129508.jpg)
18 |
GU19067700 - VIS More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
19 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 6 |
