Vehicle Exploded View - MOTO-GUZZI NEVADA 750 1991-1993
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

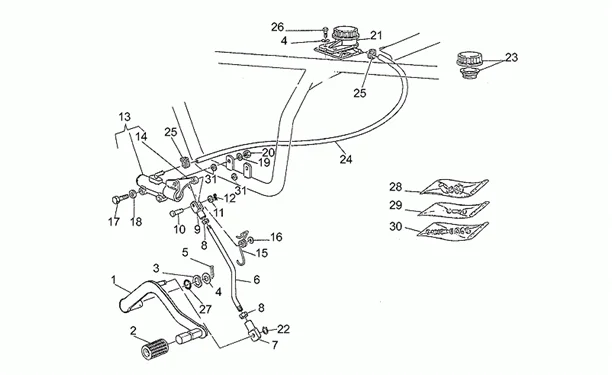

Chassis : 33.19 POMPE FREIN ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/498/Nevada_750_1991-1993_33.19.PNG)
1 |
GU31677060 - PEDALE FREINS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/4/5/img/129245.jpg)
2 |
GU14251001 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/5/6/img/132756.jpg)
3 |
GU95129260 - RONDELLE ELASTIQUE More informationQuantity required : 1 |
||||||
|
4 |
GU95004215 - RONDELLE PLATE More informationQuantity required : 1 |
||||||
|
5 |
GU95500227 - GOUPILLE More informationQuantity required : 1 |
||||||
|
6 |
GU31675280 - TIGE More informationQuantity required : 1 |
||||||
|
7 |
GU18257551 - PIVOT More informationQuantity required : 1 |
||||||
|
8 |
GU92690073 - ECROU More informationQuantity required : 1 |
||||||
|
10 |
GU95770265 - GOUPILLE More informationQuantity required : 1 |
||||||
|
11 |
GU95129110 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/6/4/img/132764.JPG)
12 |
GU95500222 - GOUPILLE More informationQuantity required : 1 |
||||||
|
14 |
GU19667500 - LEVIER COMM.POMPE More informationQuantity required : 1 |
||||||
|
15 |
GU19667600 - RESSORT MAN.FERIN AR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
16 |
GU95008206 - RONDELLE 6,15X11X0,8 More informationQuantity required : 1 |
||||||
|
17 |
GU98052326 - VIS More informationQuantity required : 2 |
||||||
|
18 |
GU95000206 - RONDELLE More informationQuantity required : 4 |
||||||
|
20 |
GU92602206 - ECROU More informationQuantity required : 2 |
||||||
|
21 |
GU65663500 - RESERV.HUILE FREINS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/1/1/6/img/132116.JPG)
22 |
GU90271008 - BAGUE SEEGER More informationQuantity required : 1 |
||||||
|
23 |
GU17661052 - BOUCHON RESERVOIR More informationQuantity required : 1 |
||||||
|
24 |
GU00823950050 - T GOMMA 5X9 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/1/8/3/img/157183.jpg)
25 |
GU19157800 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/8/img/132928.jpg)
26 |
GU98084316 - VIS M6X16 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/9/img/69479.jpg)
27 |
O'RING GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -847180- More informationQuantity required : 1 |
||||||
|
28 |
GU19659500 - GR.REVISION RACCORDDE POMP More informationQuantity required : 1 |
||||||
|
29 |
GU19659600 - KIT DE GOUIJONS LEV More informationQuantity required : 1 |
||||||
|
30 |
GU17659352 - KIT REV.POMPE AR More informationQuantity required : 1 |
||||||
|
31 |
GU91180605 - ENTRETOISE More informationQuantity required : 2 |
