Vehicle Exploded View - MOTO-GUZZI NEVADA 750 1991-1993
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

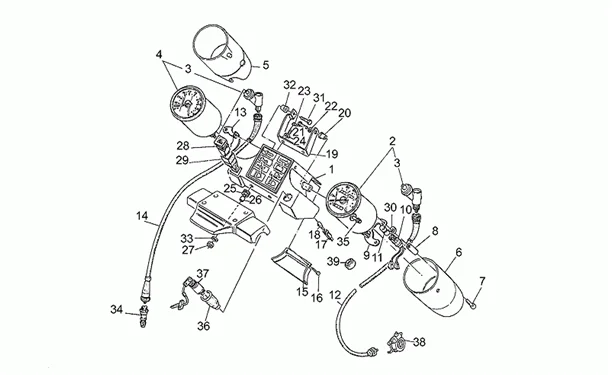

Chassis : 33.07 TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/498/Nevada_750_1991-1993_33.07.PNG)
2 |
GU31761560 - COMPTEUR KM More informationQuantity required : 1 |
||||||
|
3 |
GU23768310 - RENVOI 60° More informationQuantity required : 2 |
||||||
|
4 |
GU31767260 - COMPTE-TOURS More informationQuantity required : 1 |
||||||
|
5 |
GU23761910 - BOUCHON More informationQuantity required : 1 |
||||||
|
6 |
GU23762010 - BOUCHON More informationQuantity required : 1 |
||||||
|
8 |
GU23765110 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
9 |
GU23764910 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/9/img/66269.jpg)
11 |
294131 - AMPOULE 12V 3W More informationQuantity required : 2 |
||||||
|
12 |
GU27760410 - TRANSMISSION TACHYMETRE More informationQuantity required : 1 |
||||||
|
13 |
GU23766510 - PLAQUE More informationQuantity required : 1 |
||||||
|
14 |
GU23768110 - TRANSMISSION COMPTE-TOURS More informationQuantity required : 1 |
||||||
|
16 |
GU99210210 - VIS TARAUD More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/7/0/5/img/129705.jpg)
17 |
BULB HOLDER - DASHBOARD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU19768680- More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/6/0/img/65760.jpg)
18 |
LIGHT BULB - INDICATOR LIGHT 12V-1/2W "PIAGGIO GENUINE PART" BEVERLY, X7, LIBERTY, ZIP, VESPA GTS/MOTO-GUZZI -164634- More informationQuantity required : 8 |
||||||
|
19 |
GU23764110 - CAVALIER More informationQuantity required : 1 |
||||||
|
22 |
GU95004205 - RONDELLE More informationQuantity required : 2 |
||||||
|
23 |
GU98054320 - VIS M6X20 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
24 |
GU95008206 - RONDELLE 6,15X11X0,8 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/6/1/img/132361.jpg)
25 |
GU91551086 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
26 |
GU91180607 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
27 |
GU92630106 - ECROU M6X1 More informationQuantity required : 2 |
||||||
|
29 |
GU35755780 - CAPUCHON More informationQuantity required : 1 |
||||||
|
30 |
GU93110060 - CAOUTCHOUC More informationQuantity required : 4 |
||||||
|
31 |
GU98054230 - VIS More informationQuantity required : 1 |
||||||
|
32 |
GU23766910 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
33 |
GU61013800 - RONDELLE SPECIALE More informationQuantity required : 2 |
||||||
|
34 |
GU14769200 - RENVOI Z=14 More informationQuantity required : 1 |
||||||
|
35 |
GU19762810 - POUSSOIR RAZ More informationQuantity required : 1 |
||||||
|
36 |
GU19741336 - CAPUCHON More informationQuantity required : 1 |
||||||
|
37 |
GU31735360 - BLOC DEMARREUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/3/2/1/img/131321.jpg)
38 |
SPEEDOMETER SOCKET "PIAGGIO GENUINE PART" MOTO-GUZZI 750 STRADA, TARGA, SP, V35, V50, V65, V75 -GU31762562- More informationQuantity required : 1 |
