Vehicle Exploded View - MOTO-GUZZI NEVADA 750 1991-1993
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

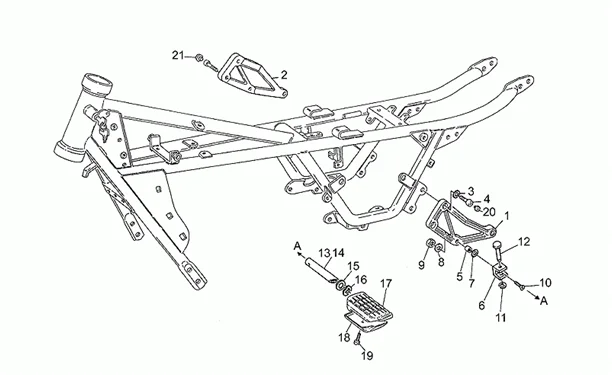

Chassis : 33.17 REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/498/Nevada_750_1991-1993_33.17.PNG)
1 |
GU23446010 - PLAQUE More informationQuantity required : 1 |
||||||
|
2 |
GU23443510 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
3 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 4 |
||||||
|
4 |
GU98622416 - VIS More informationQuantity required : 4 |
||||||
|
5 |
GU29436450 - DOUILLE More informationQuantity required : 2 |
||||||
|
6 |
GU66441730 - PLAQUETTE More informationQuantity required : 2 |
||||||
|
7 |
GU95021108 - RONDELLE ELASTIQUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
8 |
GU61270300 - RONDELLE ELASTIQUE More informationQuantity required : 2 |
||||||
|
9 |
GU92630508 - ECROU More informationQuantity required : 2 |
||||||
|
10 |
GU98250835 - VIS M8X35 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/7/img/63797.jpg)
11 |
005965 - ANNEAU S00596500 More informationQuantity required : 2 |
||||||
|
12 |
GU66440630 - AXE More informationQuantity required : 2 |
||||||
|
13 |
GU66440730 - TUBE More informationQuantity required : 1 |
||||||
|
14 |
GU66441830 - TUYAU REP.-PIEDS AV.G. More informationQuantity required : 1 |
||||||
|
15 |
GU664416302 - RONDELLE More informationQuantity required : 2 |
||||||
|
16 |
GU51609800 - RONDELLE ELASTIQUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/6/5/img/131965.jpg)
17 |
LEFT OR RIGHT FOOTREST "PIAGGIO GENUINE PART" MOTO-GUZZI 750 NEVADA, V7 CAFE-RACER, 1000 QUOTA -GU66443230- More informationQuantity required : 2 |
||||||
|
18 |
GU31441260 - PLAQUETTE More informationQuantity required : 2 |
||||||
|
20 |
GU93180206 - BOUCHON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/4/7/img/129947.jpg)
21 |
STEERING COLUMN CAP "PIAGGIO GENUINE PART" MOTO GUZZI BELLAGIO 940 2007>2013, BREVA 750 2003>2009, CALIFORNIA 1994>2012, NEVADA 1992>2013 -GU23943410- More informationQuantity required : 5 |
