Vehicle Exploded View - MOTO-GUZZI NEVADA 750 1991-1993
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

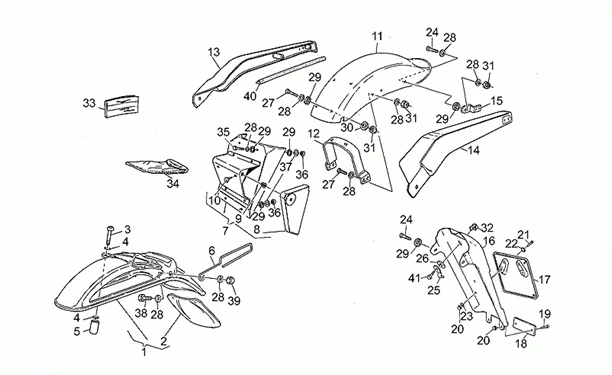

Chassis : 33.16 GARDE-BOUE AV-AR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/498/Nevada_750_1991-1993_33.16.PNG)
2 |
GU27436920 - PARE BOUE AR. More informationQuantity required : 1 |
||||||
|
3 |
GU98230845 - VIS More informationQuantity required : 4 |
||||||
|
4 |
GU90706092 - JOINT TORIQUE More informationQuantity required : 4 |
||||||
|
6 |
GU31659760 - OEILLET More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/6/1/img/132361.jpg)
9 |
GU91551086 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/6/8/0/img/129680.jpg)
10 |
GU19705900 - TAMPON More informationQuantity required : 1 |
||||||
|
11 |
GU314370801 - GARDE-BOUE AR. More informationQuantity required : 1 |
||||||
|
12 |
GU31439160 - SUPPORT GARD BOVE More informationQuantity required : 1 |
||||||
|
15 |
GU31575560 - PLAQUE More informationQuantity required : 2 |
||||||
|
17 |
GU01474630 - PORTATARGA More informationQuantity required : 1 |
||||||
|
18 |
GU31745860 - CATADIOPTRE More informationQuantity required : 1 |
||||||
|
19 |
GU98622216 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/0/0/img/132500.JPG)
20 |
GU92630105 - ECROU More informationQuantity required : 6 |
||||||
|
21 |
GU98054212 - VIS More informationQuantity required : 4 |
||||||
|
22 |
GU90706035 - JOINT TORIQUE More informationQuantity required : 4 |
||||||
|
23 |
GU95004205 - RONDELLE More informationQuantity required : 4 |
||||||
|
24 |
GU98054312 - VIS More informationQuantity required : 5 |
||||||
|
25 |
GU933011755 - CAVALIER More informationQuantity required : 1 |
||||||
|
26 |
GU95100141 - RONDELLE 6,5X20X2 More informationQuantity required : 3 |
||||||
|
27 |
GU98054320 - VIS M6X20 More informationQuantity required : 6 |
||||||
|
28 |
GU95000206 - RONDELLE More informationQuantity required : 14 |
||||||
|
29 |
GU93110060 - CAOUTCHOUC More informationQuantity required : 14 |
||||||
|
30 |
GU95100118 - RONDELLE 6,2X18X1 More informationQuantity required : 2 |
||||||
|
31 |
GU92630206 - ECROU M6X1 More informationQuantity required : 6 |
||||||
|
32 |
GU92660601 - ECROU EN CAGE More informationQuantity required : 3 |
||||||
|
33 |
GU31900061 - MANUEL D ENTRETIEN More informationQuantity required : 1 |
||||||
|
35 |
GU98054325 - VIS More informationQuantity required : 2 |
||||||
|
36 |
GU92630106 - ECROU M6X1 More informationQuantity required : 4 |
||||||
|
37 |
GU95100141 - RONDELLE 6,5X20X2 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/8/img/132928.jpg)
38 |
GU98084316 - VIS M6X16 More informationQuantity required : 2 |
||||||
|
39 |
GU92781062 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/3/1/img/109031.jpg)
40 |
2B000909 - JOINT More informationQuantity required : 2 |
||||||
|
41 |
GU98054318 - VIS More informationQuantity required : 1 |
