Vehicle Exploded View - MOTO-GUZZI NEVADA 750 1991-1993
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

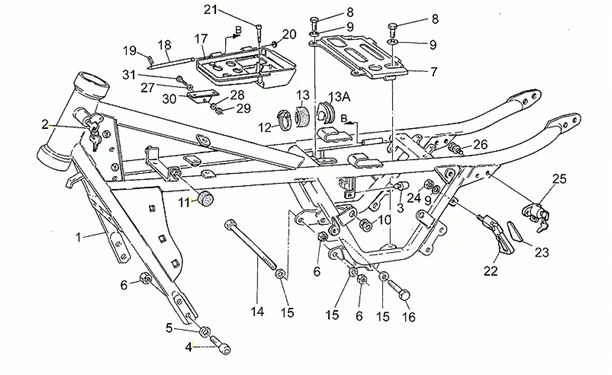

Chassis : 33.23 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/498/Nevada_750_1991-1993_33.23.PNG)
1 |
CADRE |
||||||
|
2 |
GU19782520 - SERRURE More informationQuantity required : 1 |
||||||
|
3 |
GU19461650 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/4/2/img/133142.jpg)
4 |
GU98622525 - VIS 25 MM More informationQuantity required : 4 |
||||||
|
5 |
GU95120105 - RONDELLE ELASTIQUE More informationQuantity required : 4 |
||||||
|
6 |
GU92602210 - ECROU More informationQuantity required : 6 |
||||||
|
7 |
GU27418210 - PLAQUE More informationQuantity required : 1 |
||||||
|
8 |
031117 - BOULON S03111700 More informationQuantity required : 4 |
||||||
|
9 |
GU95004208 - RONDELLE More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/6/1/img/132361.jpg)
10 |
GU91551086 - CAOUTCHOUC More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/8/8/6/img/131886.jpg)
11 |
FRAME PAD "PIAGGIO GENUINE PARTS" COMMON FOR MOTO-GUZZI RANGE -GU39103400 More informationQuantity required : 2 |
||||||
|
12 |
GU14609650 - COLLIER 3,6X20,6 More informationQuantity required : 2 |
||||||
|
13 |
Caoutchouc |
||||||
|
13 |
GU28109040 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
14 |
GU98110199 - PIVOT M10X205 More informationQuantity required : 1 |
||||||
|
15 |
GU95004210 - RONDELLE 10,2X18X2 More informationQuantity required : 7 |
||||||
|
16 |
GU98052555 - VIS More informationQuantity required : 2 |
||||||
|
17 |
|
||||||
|
18 |
AXE |
||||||
|
19 |
Goupille |
||||||
|
20 |
GU90280005 - JONC D ARRET More informationQuantity required : 1 |
||||||
|
21 |
|
||||||
|
22 |
Poignée |
||||||
|
23 |
DECALCOMANIE D |
||||||
|
24 |
GU92630108 - ECROU More informationQuantity required : 1 |
||||||
|
25 |
GU66466815 - SERRURE CASQUE More informationQuantity required : 1 |
||||||
|
26 |
GU66468115 - VIS A ARRACHEMENT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/0/3/img/132703.jpg)
27 |
GU95100059 - RONDELLE 5,25X14X1,5 More informationQuantity required : 3 |
||||||
|
28 |
GU95021105 - RONDELLE EVENT. More informationQuantity required : 3 |
||||||
|
29 |
GU92602205 - ECROU More informationQuantity required : 3 |
||||||
|
30 |
|
||||||
|
31 |
VIS |
