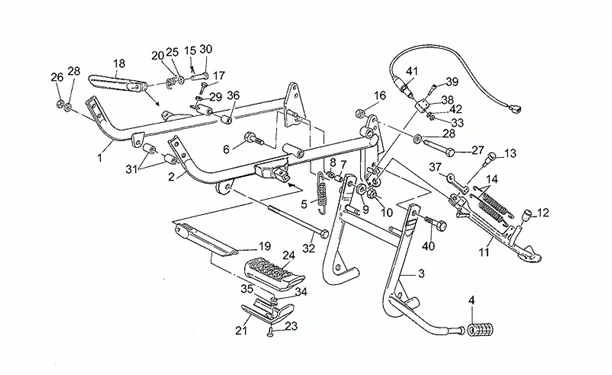

Chassis : 33.05 BÉQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/498/Nevada_750_1991-1993_33.05.PNG)
3 |
GU23430370 - BEQUILLE CENTRALE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/6/7/img/129167.JPG)
4 |
GU13432640 - PEDALE EN CAOUTCH. More informationQuantity required : 1 |
||||||
|
5 |
GU12434001 - RESSORT RAPPEL BEQ. More informationQuantity required : 2 |
||||||
|
6 |
GU98054530 - VIS More informationQuantity required : 1 |
||||||
|
7 |
GU91181114 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/4/7/img/132647.jpg)
8 |
ROCKER SPRING "PIAGGIO GENUINE PART" COMMON FOR MOTO-GUZZI RANGE -GU94322215- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/0/6/2/img/110062.jpg)
9 |
0030404 - RONDELLE S00304000 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/1/0/img/132510.JPG)
10 |
GU92630510 - ECROU M10X1,5 More informationQuantity required : 2 |
||||||
|
11 |
GU31432183 - BRAS LATERALE NOIRE More informationQuantity required : 1 |
||||||
|
12 |
GU14423800 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
13 |
GU99105129 - PIVOT More informationQuantity required : 1 |
||||||
|
14 |
GU17434060 - RESSORT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/6/2/img/132762.jpg)
15 |
GU95401215 - GOUPILLE More informationQuantity required : 2 |
||||||
|
16 |
GU92602210 - ECROU More informationQuantity required : 2 |
||||||
|
17 |
GU98054322 - VIS More informationQuantity required : 1 |
||||||
|
18 |
GU23440710 - TUYAU REP.-PIEDS AV.D. More informationQuantity required : 1 |
||||||
|
19 |
GU23441810 - TUYAU REP.-PIEDS AV.G. More informationQuantity required : 1 |
||||||
|
20 |
GU03441130 - MOLLA More informationQuantity required : 2 |
||||||
|
21 |
GU23441210 - PLAQUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/7/img/132927.jpg)
23 |
GU98084314 - VIS M6X14 More informationQuantity required : 2 |
||||||
|
24 |
GU23443210 - PEDALE EN CAOUTCH. More informationQuantity required : 2 |
||||||
|
25 |
GU95000208 - RONDELLE More informationQuantity required : 2 |
||||||
|
26 |
GU92602210 - ECROU More informationQuantity required : 1 |
||||||
|
27 |
GU98052565 - VIS More informationQuantity required : 2 |
||||||
|
28 |
GU95004210 - RONDELLE 10,2X18X2 More informationQuantity required : 3 |
||||||
|
29 |
GU92602206 - ECROU More informationQuantity required : 1 |
||||||
|
30 |
GU23442210 - PIVOT More informationQuantity required : 2 |
||||||
|
31 |
GU19017000 - BAGUE More informationQuantity required : 2 |
||||||
|
32 |
GU53429500 - PIVOT M10X250 More informationQuantity required : 1 |
||||||
|
33 |
GU92602508 - ECROU M8X1 More informationQuantity required : 1 |
||||||
|
34 |
GU91180602 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
35 |
GU95129130 - RONDELLE ELASTIQUE More informationQuantity required : 2 |
||||||
|
36 |
GU28252060 - DOUILLE 18 MM EST. More informationQuantity required : 4 |
||||||
|
36 |
GU18252050 - BAGUE 19 MM More informationQuantity required : 4 |
||||||
|
39 |
GU98612110 - VIS More informationQuantity required : 2 |
||||||
|
40 |
GU98052535 - VIS More informationQuantity required : 1 |
||||||
|
41 |
GU29759150 - INTERRUPTEUR BEQUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
42 |
GU61270300 - RONDELLE ELASTIQUE More informationQuantity required : 1 |
